BRG NTP-V2 Time Server
Stratum 1 GPS Synchronized Time Server

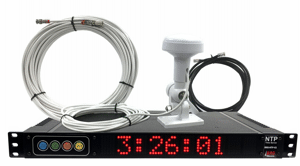

System includes:

  • NTP timer server w/power adapter
  • GPS Antenna w/mounting bracket & 23 ft of cable
  • 100ft of additional low-loss antenna cable
  • 10ft Cat5 cable to connect to network

The BRG NTP-V2 Network Time Server is a simple to use GPS based time server that will supply accurate Stratum 1 time for all computers and time keeping devices on the network. The BRG time server incorporates the proven TimeMachines NTP engine to provide accurate and reliable time. By placing a time server on the local network, NTP time packets are provided, without requiring systems to go to the Internet to obtain time synchronization. The system uses an active GPS antenna to maintain the current time as broadcast by United States GPS satellites. With this device installed on your local network, there is no longer the worry that if the Internet connection goes down, time synchronization is lost across the network.



Call 800-295-0220 or 316-788-2000
The rack mount device can be placed anywhere within the network layout. The built in high sensitivity GPS receiver is able to lock on to multiple satellites, in some cases, from within many buildings or from a window location. The dome outdoor antenna includes 25 feet of antenna cable, plus another 100 foot extension cable for a total length of 125 feet. Additional cable may be added as needed. Up to 325 feet of low-loss 70 ohm antenna cable can be used without signal loss.









BRG NTP time servers are suited to any application where coordination of events at multiple locations is required. Education, industrial facilities, military installations, public safety command rooms, government, broadcasting, and hospitals are all candidates for synchronized time systems.


Features

  • Receive time information from GPS satellites and make available using the Network Time Protocol (NTP)
  • RFC1119/1305/5905 NTP Protocol to serve time (Network Time Protocol)
  • RFC1769/2030/4330 SNTP Protocol (Simple Network Time Protocol)
  • Server Time Level: Stratum 1
  • Server Time Precision: Better than 5mS + network jitter
  • 10M/100M auto sensing network interface
  • Unit is capable of serving 350+ requests per second, or 300,000 devices updating every 15 minutes
  • Supports IPv4 and IPv6
  • Compliant with FCC Part 15B and CE marked for radiated emissions and is a lead free product
  • Power Requirements: +5V DC at less than 4W continuous



Technical Spefications
Antenna
  Antenna Type: Amplified Indoor/Outdoor, swivel mount
  Gain: 30dB 5dB
  Coverage: 360 Azimuth, 0-90 Elevation
  Antenna Cable: 100 ft. standard or length as need optiona
GPS Receiver
  Type: 22 channel low power receiver
  Sensitivity: -165dBm
  GPS Time Precision: +/- 10ns RMS jitter
  Antenna Connection: 1575.42MHz (L1 Band)
User Interface
  Display: 1X10 LED Multi-Color Display
  Status: GPS Lock
  Buttons: Mode, Up, Down, Control
Power Adapter
  Standard: 85 to 260VAC to 5VDC, (47Hz-63Hz)
Environmental
  Operating Temperature: -40 to +70C
Pulse Signal
  Reference Pulse: 1 PPS, 1uS width, 3.3V
Time Signals
  RS232:: NMEA Information

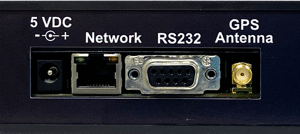

  Connectors: RJ45, DB9
  Protocol: NTP/SNTP
  Ethernet Port: 1X 10/100Mbps
Mechanical
  Enclosure: 1U, 19 inch rack
  Size:

1.78"H x 19"W x 10.7"D or 45cm H x 482cm W x 272cm D

  Weight:

11 lbs. (5kg)
