TZ Series

USER CHANGEABLE COLOR is standard on all BRG LED digital clocks.

The 200 Style of Time Zone Clocks are either one or two zone clocks housed in a plastic enclosure that provides you with economical benefits vs. our Fixed Zone or Programmable Zone Time Zone Clocks.  These clocks are less expensive, but still provide you with the accuracy of 1 second over 20 years.  The control buttons are located on the top of the clock for programming changes.

There are two eyelets on the back of the clock to hang it on the wall and it comes with an 110VAC to 5 VDC power adapter with a US plug.  There are knock out plugs on the unit so it can be pole mounted.

You can display more than just time on BRG time zone displays - For clocks with bar segment digits, any zone can be configured to display the Julian Day/Date, Sunrise time, Sunset time, temperature, configurable fixed numbers and more.  Additionally, clocks using matrix characters for time or location label, you can also display the Military shipping code and Air Tasking Order (ATO).

Call 866-252-2704 or 316-530-8854

TZ202 TZ##440

Features:

  • 1.8" bar-segment LEDs for the time with 0.75" white vinyl lettering for the zone labels
  • Zones are linited to Local & Zulu
  • All zones are precisely synchronized with one another.
  • Factory synchronized with the U.S. Atomic Clock.
  • Accurate for Life – no manual adjustments are required for the life of the display, no sync wires, no radios, no problems.
  • Time and configuration are maintained during shipping and power outages
  • Operating Voltage: 5VDC power adapter for 110VAC
  • Control buttons on the top of the clock

Time Sync Method

  • OCXO High Precision Oscillator accurate to 1 second over 20 years



Features:

  • 4.0" bar-segment LEDs for the time with 1.0" white vinyl lettering mounted on black lexan for the zone label
  • User Changeable Multi-color LEDs
  • Operating Voltage: 5VDC power adapter for 110VAC
  • Control buttons on the top of the clock

Time Sync Method

  • TZHP440 - OCXO High Precision Oscillator accurate to 1 second over 20 years
  • TZEN440 - Ethernet port required
  • TZPE440 - Syncs to Power over Ethernet (PoE)
  • TZWF440 - Syncs to your Wi-Fi Network
  • TZRC440 - Recieves Signal from a DuraTime 2.4 GHz wirless master clock

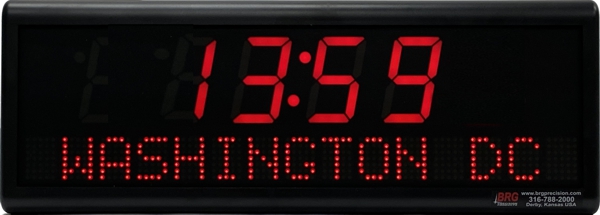

TZ##4251012 TZ##4251512

Features:

  • 2.5" bar-segment LEDs for the time
  • 1.2" 10 digit dot matrix LED zone label/date
  • User Changeable Multi-color LEDs
  • Operating Voltage: 5VDC power adapter for 110VAC
  • Control buttons on the top of the clock

Time Sync Method

  • TZHP42514012 - OCXO High Precision Oscillator accurate to 1 second over 20 years
  • TZEN4251012 - Ethernet port required
  • TZPE4251012 - Syncs to PoE
  • TZWF4251012 - Syncs to your Wi-Fi Network
  • TZRC4251012 - Recieves Signal from a DuraTime 2.4 GHz wirless master clock

Features:

  • 2.5" bar-segment LEDs for the time
  • 1.2" 15 digit dot matrix LED zone label/date
  • User Changeable Multi-color LEDs
  • Operating Voltage: 5VDC power adapter for 110VAC
  • Control buttons on the top of the clock

Time Sync Method

  • TZHP440 - OCXO High Precision Oscillator accurate to 1 second over 20 years
  • TZEN440 - Ethernet port required
  • TZPE440 - Syncs to PoE
  • TZWF440 - Syncs to your Wi-Fi Network
  • TZRC440 - Recieves Signal from a DuraTime 2.4 GHz wirless master clock

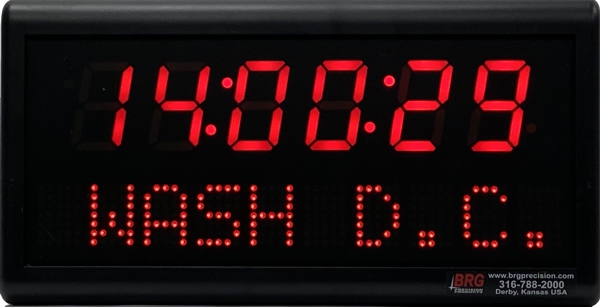

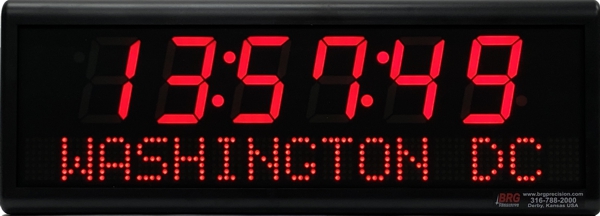

TZ##6181012 TZ##6251512

Features:

  • 1.8" bar-segment LEDs for the time
  • 1.2" 10 digit dot matrix LED zone label/date
  • User Changeable Multi-color LEDs
  • Operating Voltage: 5VDC power adapter for 110VAC
  • Control buttons on the top of the clock

Time Sync Method

  • TZHP6181012 - OCXO High Precision Oscillator accurate to 1 second over 20 years
  • TZEN6181012 - Ethernet port required
  • TZPE6181012 - Syncs to PoE
  • TZWF6181012 - Syncs to your Wi-Fi Network
  • TZRC6181012 - Recieves Signal from a DuraTime 2.4 GHz wirless master clock

Features:

  • 2.5" bar-segment LEDs for the time
  • 1.2" 15 digit dot matrix LED zone label/date
  • User Changeable Multi-color LEDs
  • Operating Voltage: 5VDC power adapter for 110VAC
  • Control buttons on the top of the clock

Time Sync Method

  • TZHP6251512 - OCXO High Precision Oscillator accurate to 1 second over 20 years
  • TZEN6251512 - Ethernet port required
  • TZPE6251512 - Syncs to PoE
  • TZWF6251512 - Syncs to your Wi-Fi Network
  • TZRC6251512 - Recieves Signal from a DuraTime 2.4 GHz wirless master clock

Online Orders

The Time Zone Clocks that are ordered on-line are built with the specifications below:

  • User-Changable Multi-color Bar Segment LEDs for Time
  • White Vinyl Zone Labels or Dot Matrix LEDs depending on model ordered
  • OCXO Oscillator that is accurate to +/- 1 second over 20 years
  • 3.5 ft power adapter with U.S. plug
  • 1 week lead time
  • Time Zone Label

Model
Zones
Time Display
Label Size
Viewing Dist.
Inches
Time Source
Video
Buy Online
H
W

TZ202 2 1.8"

0.75" White Vinyl

40 ft. 6.125

16.88

OCXO

TZHP440 1 4.0" 1.0" White vinyl
on Lexan
40 ft. 6.125 11.88 OCXO
TZEN440 1 4.0" 1.0" White vinyl
on Lexan
40 ft. 6.125 11.88 Ethernet
TZPE440 1 4.0" 1.0" White vinyl
on Lexan
40 ft. 6.125 11.88 PoE
TZWF440 1 4.0" 1.0" White vinyl
on Lexan
40 ft. 6.125 11.88 Wi-Fi
TZRC440 1 4.0" 1.0" White vinyl
on Lexan
40 ft. 6.125 11.88 DuraTime Wirless Master

TZHP4251012 1 2.5"

10 Digit
1.2" Dot Matrix LED

40 ft. 6.125

11.88

OCXO
TZEN4251012 1 2.5"

10 Digit
1.2" Dot Matrix LED

40 ft. 6.125

11.88

Ethernet
TZPE4251012 1 2.5"

10 Digit
1.2" Dot Matrix LED

40 ft. 6.125

11.88

PoE
TZWF4251012 1 2.5"

10 Digit
1.2" Dot Matrix LED

40 ft. 6.125

11.88

Wi-Fi
TZRC4251012 1 2.5"

10 Digit
1.2" Dot Matrix LED

40 ft. 6.125

11.88

DuraTime Wirless Master

TZHP4251512 1 2.5" 15 Digit
1.2" Dot Matrix LED
40 ft. 6.125 16.88 OCXO
TZEN4251512 1 2.5" 15 Digit
1.2" Dot Matrix LED
40 ft. 6.125 16.88 Ethernet
TZPE4251512 1 2.5" 15 Digit
1.2" Dot Matrix LED
40 ft. 6.125 16.88 PoE
TZWF4251512 1 2.5" 15 Digit
1.2" Dot Matrix LED
40 ft. 6.125 16.88 Wi-Fi
TZRC4251512 1 2.5" 15 Digit
1.2" Dot Matrix LED
40 ft. 6.125 16.88 DuraTime Wirless Master

TZHP6181012 1 1.8" 10 Digit
1.2" Dot Matrix LED
40 ft. 6.125 11.88 OCXO
TZEN6181012 1 1.8" 10 Digit
1.2" Dot Matrix LED
40 ft. 6.125 11.88 Ethernet
TZPE6181012 1 1.8" 10 Digit
1.2" Dot Matrix LED
40 ft. 6.125 11.88 PoE
TZWF6181012 1 1.8" 10 Digit
1.2" Dot Matrix LED
40 ft. 6.125 11.88 Wi-Fi
TZRC6181012 1 1.8" 10 Digit
1.2" Dot Matrix LED
40 ft. 6.125 11.88 DuraTime Wirless Master

TZHP6251512 1 2.5" 15 Digit
1.2" Dot Matrix LED
40 ft. 6.125 16.88 OCXO
TZEN6251512 1 2.5" 15 Digit
1.2" Dot Matrix LED
40 ft. 6.125 16.88 Ethernet
TZPE6251512 1 2.5" 15 Digit
1.2" Dot Matrix LED
40 ft. 6.125 16.88 PoE
TZWF6251512 1 2.5" 15 Digit
1.2" Dot Matrix LED
40 ft. 6.125 16.88 Wi-Fi
TZRC6251512 1 2.5" 15 Digit
1.2" Dot Matrix LED
40 ft. 6.125 16.88 DuraTime Wirless Master

BRG Time Zone Clocks can be configured to display the following special information when specified at the time of purchase. Not all features can be included in every clock due to memory constraints or operational conflicts:

  • ATO Military Day Code (alpha displays only)
  • ISO8601 Work Week (alpha and/or numeric displays)
  • Julian Date (day of the year - alpha and/or numeric displays)
  • Week of the Year (alpha displays only)
  • Sunrise and/or Sunset Time (alpha and/or numeric displays)
  • Military Shipping Code A-Z, no I or O (alpha displays only)
