BRG Style 300 Vertical Digital Time Zone Displays, World Clocks, Digital World Clocks or Time Zone Clocks

Style 300

USER CHANGEABLE COLOR is standard on all BRG LED digital clocks.

BRG Time Zone Clocks are accurate for life without the need for manual or external time updates. A GUI touch screen IR remote control is available to ease configuration.

BRG's New C-Series, Featuring User Changeable Multi-Color LEDs

Model: 300E with User Changeable Multi-Color LEDs

Change the color of one or all of the time zones to one of 7 different colors.
Available colors: Red, Blue, Green, Yellow, Magenta, Cyan and White

Introducing BRG's New Time Commander Graphical Remote Control Programmer Option

Click for more information

Allows you to change the:

Time Display Rules for each zone
LED Colors (user changeable models)
Intensity (global or by zone)
Zone Labels (programmable models)

Use on multiple time zone clocks
Easy to use
Eliminates the need for a computer interface
Wireless IR remote
Color touch screen for ease
Saves time when reprogramming clock
Large 7 inch color LCD touch screen display
Rechargeable Battery

Time Zone Display Style 300

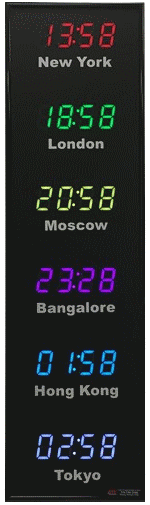

BRG Model 300E Digital LED Time Zone Display, features 6 zones and 1.8 inch LEDs. UTC Clock, Multi Location Clock, Zulu Clock, Multi-location Clock

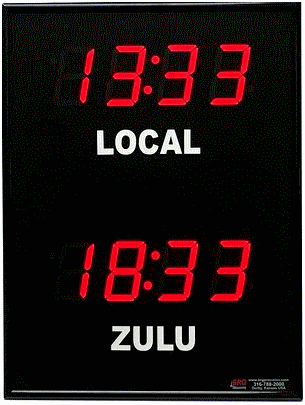

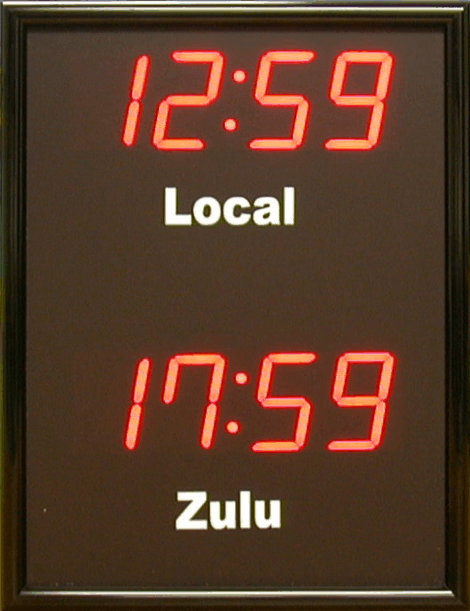

Model 300J with Model 300E with
Sample Zones Sample Zones

The 300 series time zone clocks have bar-segment LED time displays with white vinyl zone labels. 300 models display between 2 and 10 time zones.

All zones are precisely synchronized with one another.
Factory synchronized with the U.S. Atomic Clock.
Accurate for Life – no manual adjustments are required for the life of the display, no sync wires, no radios, no problems.
Time and configuration are maintained during shipping and power outages
Operating Voltage: 90-265 volts AC.
Many control, sync methods, power and color options are available
Includes BRG's F5 Anodized Black Aluminum Frame Learn More

For easy clock management, an infrared (IR) remote control is included with every 300 model. You can specify a radio (RF) remote, if preferred for no additional charge.

Call 866-252-2704 or 316-530-8854

Now with 3X more LED's than competing products!

Available Options for the 300 Time Zone Clock
Computer Interface and Time Sync Options
Option	Unit	Description
EN	Per Clock	Ethernet Synchronization
USB	Per Clock	PC Communications (USB)
GP	Per Clock	GPS Atomic Time Receiver (Indoor or Outdoor Mount)
PC	Per Clock	PC Serial Port Interface (RS232/422 Converter)
SB	Per Clock	IRIG-B / SMPTE Receiver
WF	Per Clock	Wi-Fi Receiver
SR-ST	Per Clock	Serial Wire Sync Receive / Transmit
ST	Per Clock	Serial Wire Sync Transmit

Misc Options
Option	Unit	Description
AB	Per Clock	Auto Brightness
M16	Per Zone	Add 1.8" Seconds display to one zone
M26	Per Zone	Add 2.5" Seconds display to one zone
M46	Per Zone	Add 2.5" Seconds display to one zone
RL	Per Zone	Removable Labels (Choose one or all zones)
TS	Per Clock	Add a temperature senor to one zone
TM	Per Clock	Add Timer and IR receiver to one zone
PM2	Per Clock	Double Pole Mount for ceiling mounting the clock

Remote Control Options
Option	Description
IR1	The infrared remote control is included with the purchase of a time zone clock
USB-IR	IR dongle for your PC that allows you to control the time zone clock can be substituted of the IR1 Remote
TC	Time Commander graphical IR remote control

Power Configuration Options
Option	Description
P0812	12 ft. power cord with US Plug (Default)
P0808	8 ft. power cord with US Plug
P11	8.5 ft. power cord with UK Plug
P16	8.5 ft. power cord with Euro Plug
P12	6.5 ft. power cord with Australian Plug

The 300 Models

Model	Zones	Time Displays	Label Size White Vinyl	Viewing Distance	Inches		Spec Sheet	Buy a Multi-Color LED Clock Online or order through GSA Advantage. GSA orders please call with zone labels
Model	Zones	Time Displays	Label Size White Vinyl	Viewing Distance	H	W	Spec Sheet

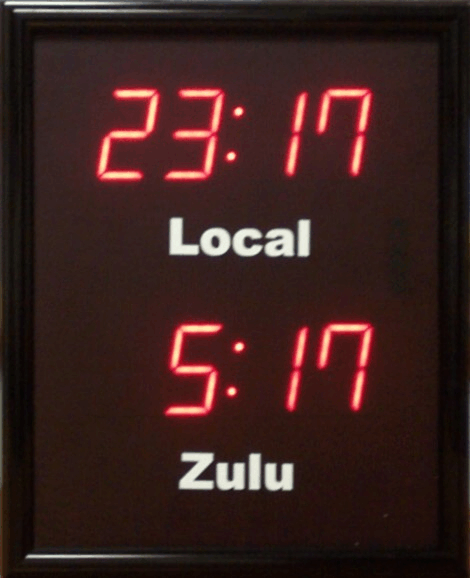

300A	2	1.8"	0.75"	40 ft.	12.25	10.25

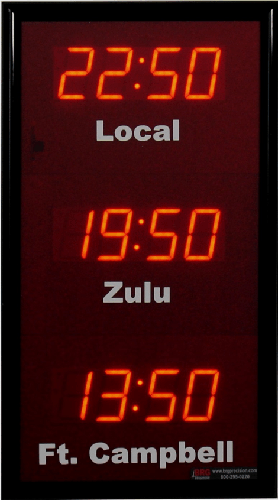

300B	3	1.8"	0.75"	40 ft.	18.25	10.25

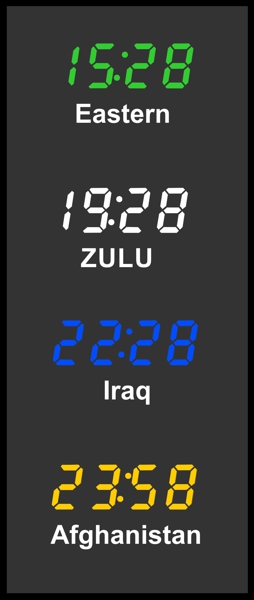

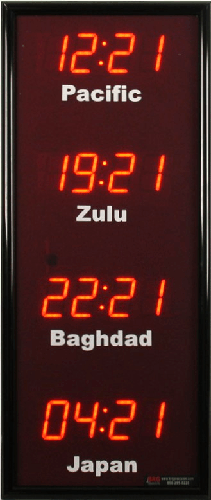

300C	4	1.8"	0.75"	40 ft.	24.25	10.25

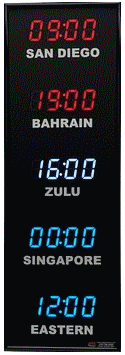

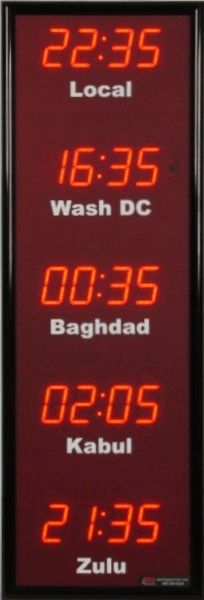

300D	5	1.8"	0.75"	40 ft.	30.25	10.25
300E	6	1.8"	0.75"	40 ft.	36.25	10.25

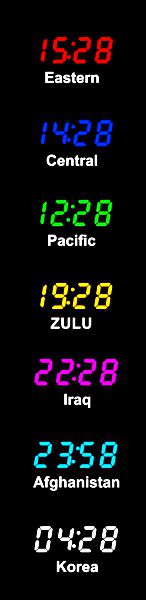

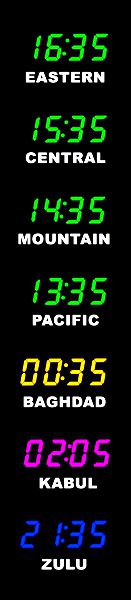

300F	7	1.8"	0.75"	40 ft.	42.25	10.25

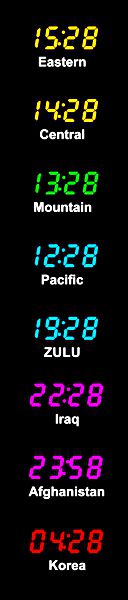

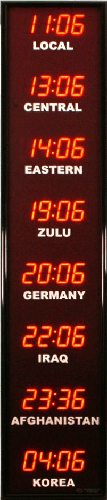

300G	8	1.8"	0.75"	40 ft.	48.25	10.25

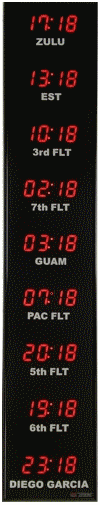

300H	9	1.8"	0.75"	40 ft.	54.25	10.25
300I	10	1.8"	0.75"	40 ft.	60.25	10.25

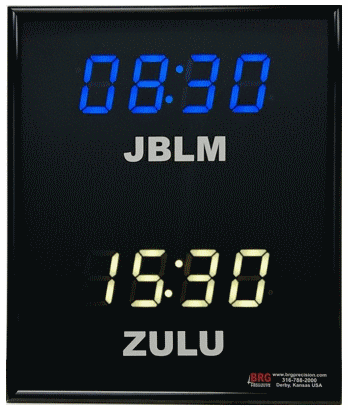

300J	2	2.5"	1.00"	75 ft.	16.25	12.25

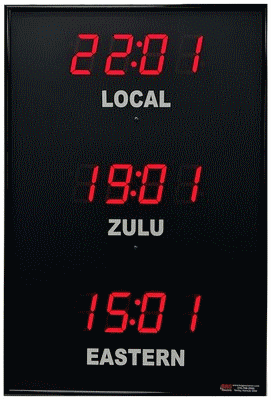

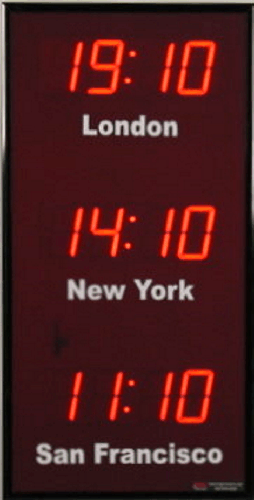

300K	3	2.5"	1.00"	75 ft.	24.25	12.25

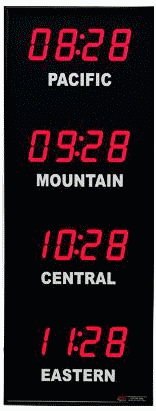

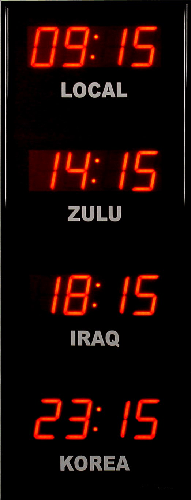

300L	4	2.5"	1.00"	75 ft.	32.25	12.25

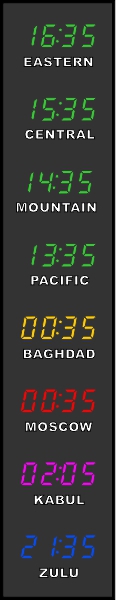

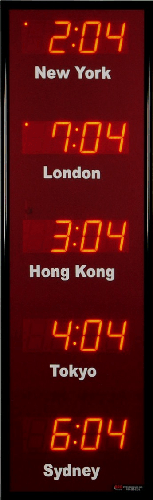

300M	5	2.5"	1.00"	75 ft.	40.25	12.25

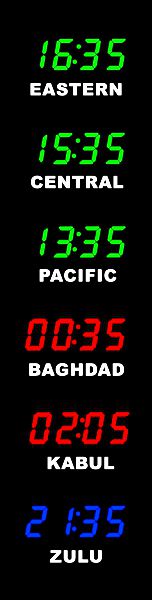

300N	6	2.5"	1.00"	75 ft.	48.25	12.25

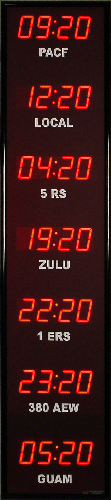

300O	7	2.5"	1.00"	75 ft.	56.25	12.25

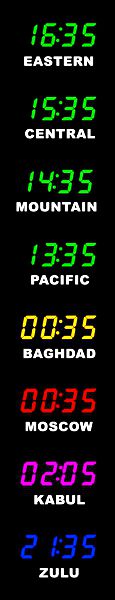

300P	8	2.5"	1.00"	75 ft.	64.25	12.25

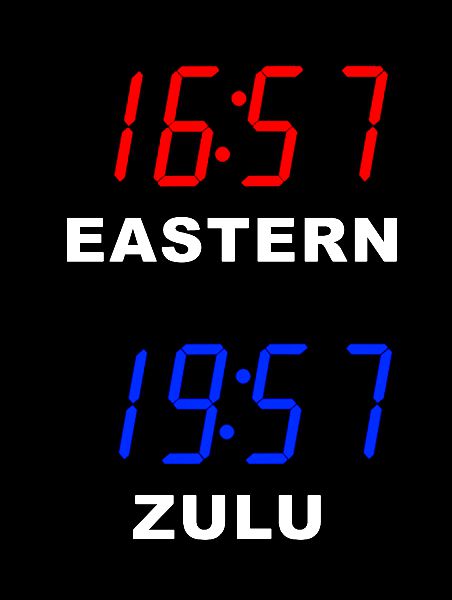

300Q	2	4.0"	1.50"	100 ft.	20.25	15.25

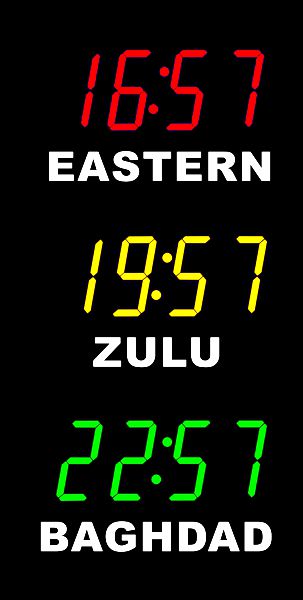

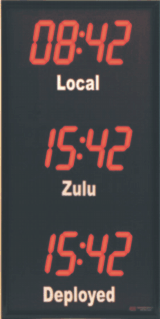

300R	3	4.0"	1.50"	100 ft.	30.25	15.25

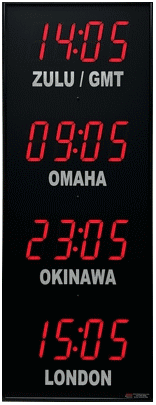

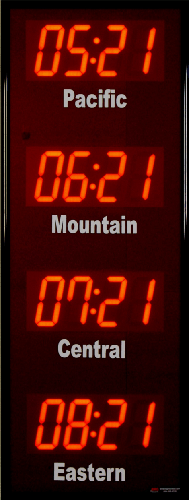

300S	4	4.0"	1.50"	100 ft.	40.25	15.25

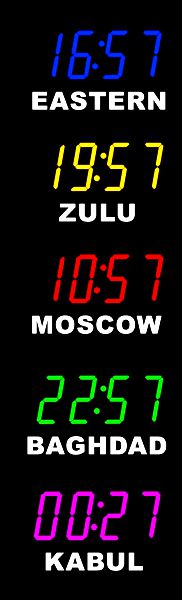

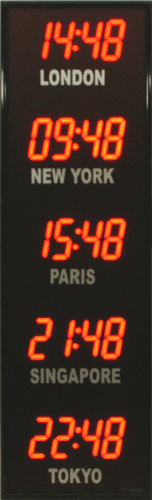

300T	5	4.0"	1.50"	100 ft.	50.25	15.25

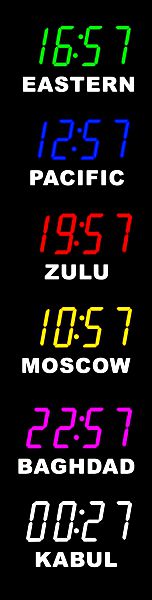

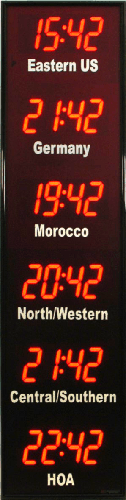

300U	6	4.0"	1.50"	100 ft.	60.25	15.25
BRG Time Zone Clocks can be configured to display the following special information when specified at the time of purchase. Not all features can be included in every clock due to memory constraints or operational conflicts: ATO Military Day Code (alpha displays only) ISO8601 Work Week (alpha and/or numeric displays) Julian Date (day of the year - alpha and/or numeric displays) Week of the Year (alpha displays only) Sunrise and/or Sunset Time (alpha and/or numeric displays) Military Shipping Code A-Z, no I or O (alpha displays only) Call 866-252-2704 or 316-530-8854

Download Spec Sheet

Additional Videos

Model Number	Number of Zones	Click on button to launch
300J-G25W	2 Zone Clock with optional 2.5" green LEDs for time and standard 1.0" zone labels.

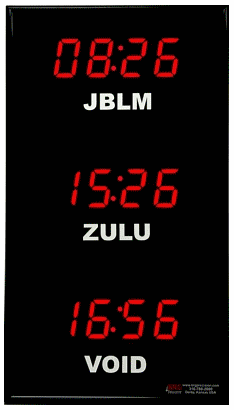

300B-RL	3 Zone Clock with 1.8" LEDs for time with 0.75" optional removable zone labels.

Color Options

Standard Colors

Single Color LED Clocks

Photo Below is a 6610E-C with user changeable multi-color LEDs & frosted lens
Change to red, blue, green, yellow, magenta, cyan or white any time you want
