Style 368

USER CHANGEABLE COLOR is standard on all BRG LED digital clocks.

BRG Time Zone Clocks are accurate for life without the need for manual or external time updates. A GUI touch screen IR remote control is available to ease configuration.

Time Zone Display Style 368

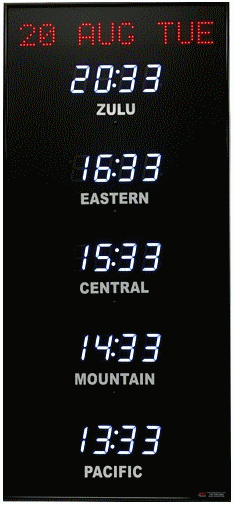

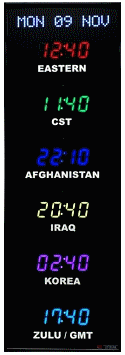

Model 368M with User Changeable Multi-Color LEDs

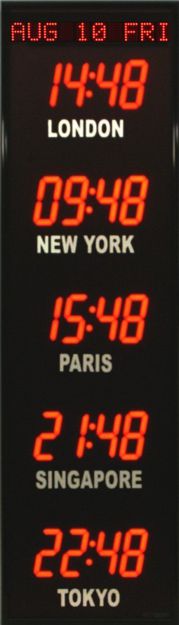

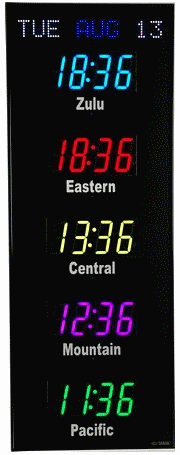

Model 368T with User Changeable Multi-Color LEDs

The 368 series time zone clocks has a dot matrix LED date, bar-segment LED time displays with white vinyl zone labels. The date can be arranged in any format and can include Julian dates. For instance you could have 14 APR 08 or FRI APR 14. The 368 models display between 2 and 10 time zones.

All zones are precisely synchronized with one another.
Factory synchronized with the U.S. Atomic Clock.
Accurate for Life – no manual adjustments are required for the life of the display, no sync wires, no radios, no problems.
Time and configuration are maintained during shipping and power outages
Operating Voltage: 90-265 volts AC.
Many control, sync methods, power and color options are available
Includes BRG's F5 Anodized Black Aluminum Frame Learn More

For easy clock management, an infrared (IR) remote control is included with every 368 model. You can specify a radio (RF) remote, if preferred for no additional charge.

Call 866-252-2704 or 316-530-8854

Now with 3X more LED's than competing products!

Available Options for the 368 Time Zone Clock
Computer Interface and Time Sync Options
Option	Unit	Description
EN	Per Clock	Ethernet Synchronization
USB	Per Clock	PC Communications (USB)
GP	Per Clock	GPS Atomic Time Receiver (Indoor or Outdoor Mount)
PC	Per Clock	PC Serial Port Interface (RS232/422 Converter)
SB	Per Clock	IRIG-B / SMPTE Receiver
WF	Per Clock	Wi-Fi Receiver
SR-ST	Per Clock	Serial Wire Sync Receive / Transmit
ST	Per Clock	Serial Wire Sync Transmit

Misc Options
Option	Unit	Description
AB	Per Clock	Auto Brightness
M16	Per Zone	Add 1.8" Seconds display to one zone
M26	Per Zone	Add 2.5" Seconds display to one zone
M46	Per Zone	Add 2.5" Seconds display to one zone
RL	Per Zone	Removable Labels (Choose one or all zones)
TS	Per Clock	Add a temperature senor to one zone
TM	Per Clock	Add Timer and IR receiver to one zone
PM2	Per Clock	Double Pole Mount for ceiling mounting the clock

Remote Control Options
Option	Description
IR1	The infrared remote control is included with the purchase of a time zone clock
USB-IR	IR dongle for your PC that allows you to control the time zone clock can be substituted of the IR1 Remote
TC	Time Commander graphical IR remote control

Power Configuration Options
Option	Description
P0812	12 ft. power cord with US Plug (Default)
P0808	8 ft. power cord with US Plug
P11	8.5 ft. power cord with UK Plug
P16	8.5 ft. power cord with Euro Plug
P12	6.5 ft. power cord with Australian Plug

The 368 Models

Model	Zones	Time Displays	Label Size White Vinyl	Date Display	Date Charac-ters	Inches		Download Spec Sheet	Photo	Video	GSA Advan-tage Item	Buy Online
Model	Zones	Time Displays	Label Size White Vinyl	Date Display	Date Charac-ters	H	W	Download Spec Sheet	Photo	Video	GSA Advan-tage Item	Buy Online
1.8" bar segment LEDs - Viewing Distance 40 ft.

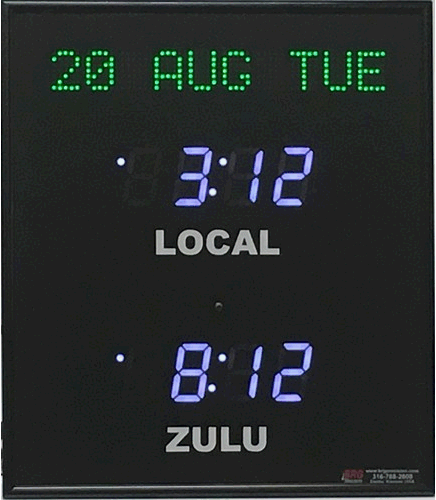

368A	2	1.8"	0.75"	1.2"	10	15.25	13.25

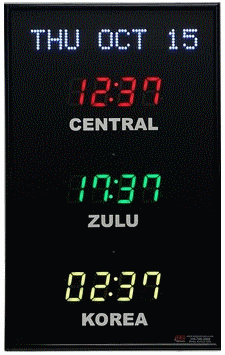

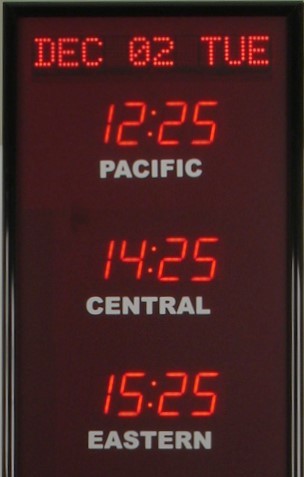

368B	3	1.8"	0.75"	1.2"	10	21.25	13.25

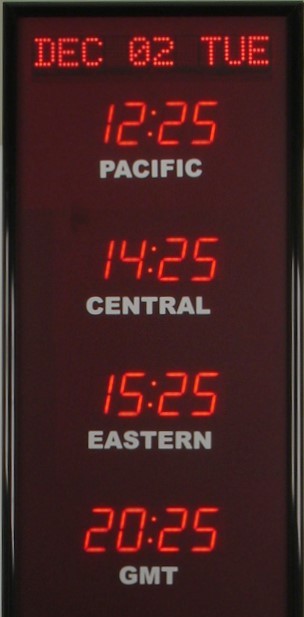

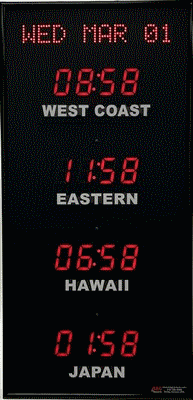

368C	4	1.8"	0.75"	1.2"	10	27.25	13.25

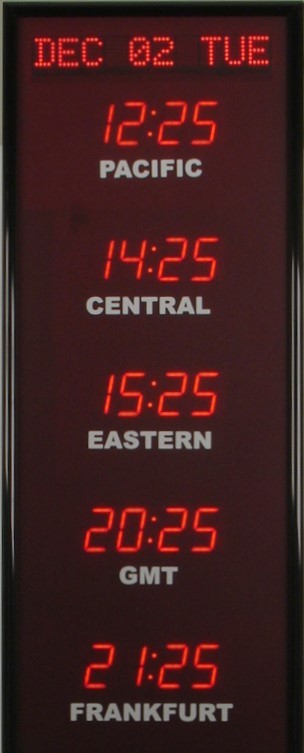

368D	5	1.8"	0.75"	1.2"	10	33.25	13.25

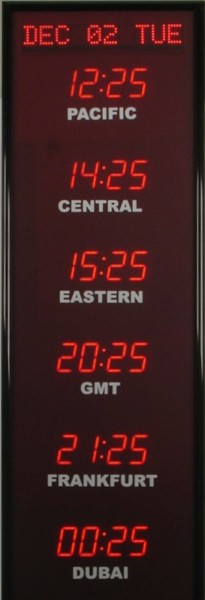

368E	6	1.8"	0.75"	1.2"	10	39.25	13.25

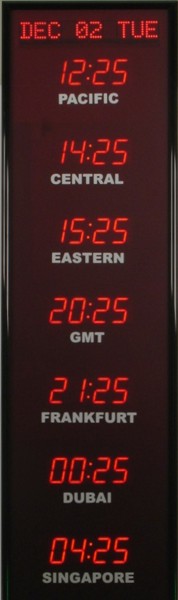

368F	7	1.8"	0.75"	1.2"	10	45.25	13.25

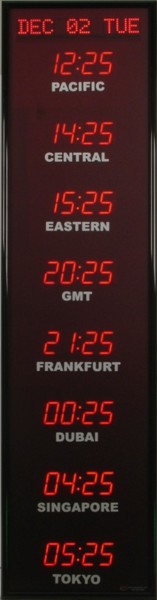

368G	8	1.8"	0.75"	1.2"	10	51.25	13.25

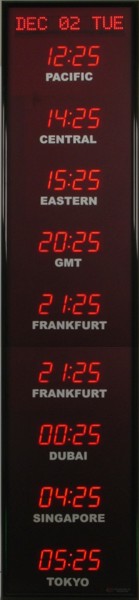

368H	9	1.8"	0.75"	1.2"	10	57.25	13.25

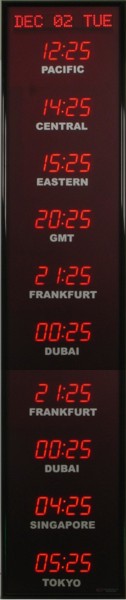

368I	10	1.8"	0.75"	1.2"	10	63.25	13.25
2.5" bar segment LEDs - Viewing Distance 75 ft.
368J	2	2.5"	1.00"	2.0"	10	20.25	20.25

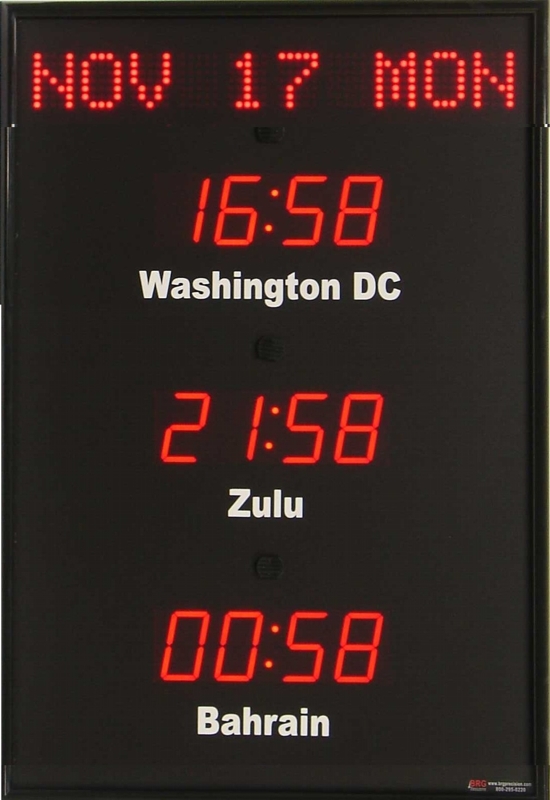

368K	3	2.5"	1.00"	2.0"	10	28.25	20.25

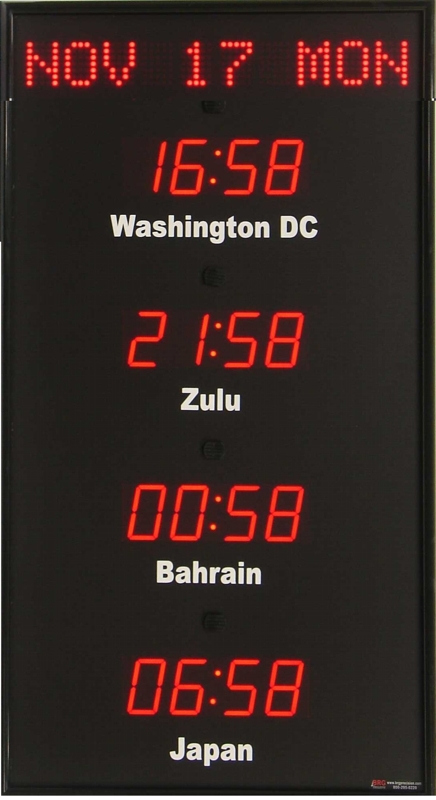

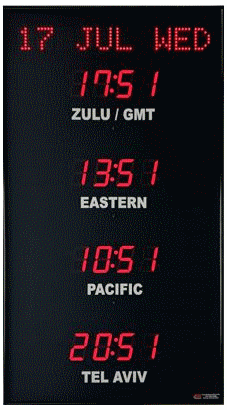

368L	4	2.5"	1.00"	2.0"	10	36.25	20.25

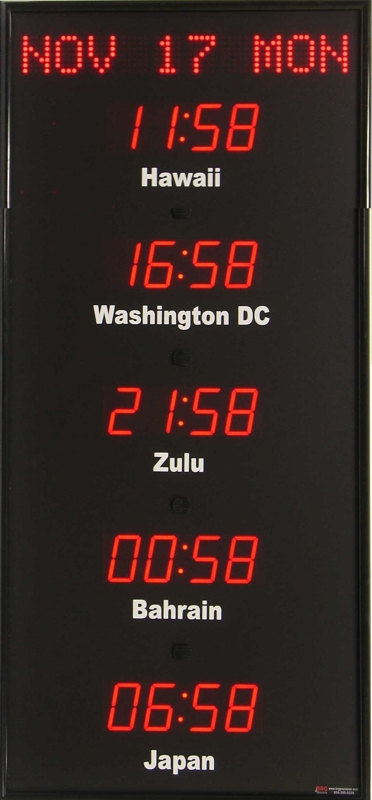

368M	5	2.5"	1.00"	2.0"	10	44.25	20.25

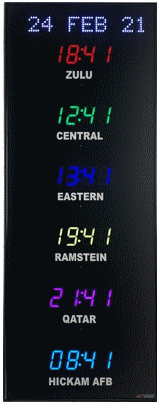

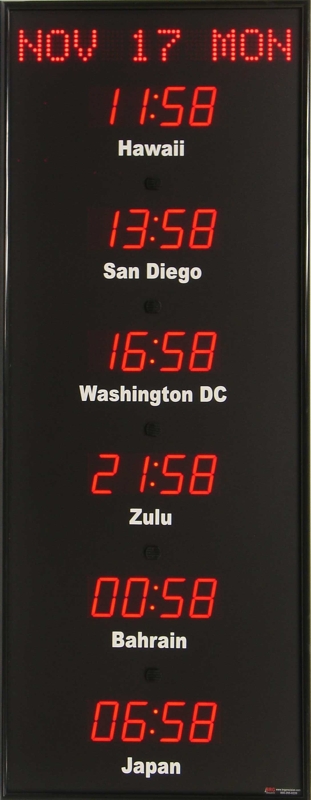

368N	6	2.5"	1.00"	2.0"	10	52.25	20.25

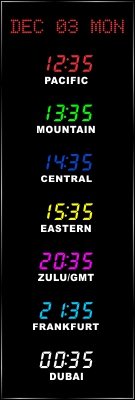

368O	7	2.5"	1.00"	2.0"	10	60.25	20.25

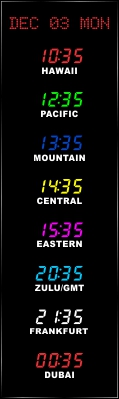

368P	8	2.5"	1.00"	2.0"	10	68.25	20.25
4.0" bar segment LEDs - Viewing Distance 100 ft.

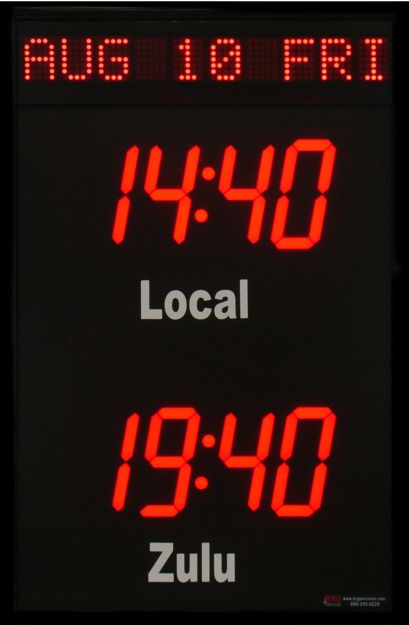

368Q	2	4.0"	1.50"	2.0"	10	24.25	20.25

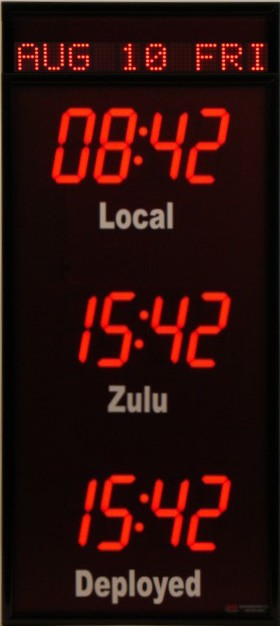

368R	3	4.0"	1.50"	2.0"	10	34.25	20.25

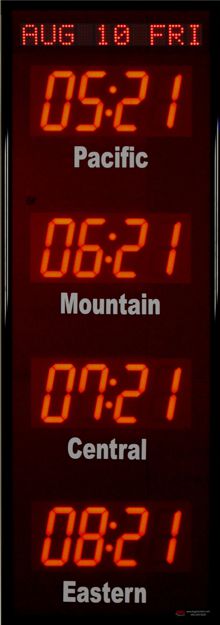

368S	4	4.0"	1.50"	2.0"	10	44.25	20.25
368T	5	4.0"	1.50"	2.0"	10	54.25	20.25

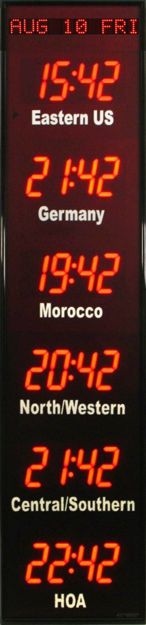

368U	6	4.0"	1.50"	2.0"	10	64.25	20.25
BRG Time Zone Clocks can be configured to display the following special information when specified at the time of purchase. Not all features can be included in every clock due to memory constraints or operational conflicts: ATO Military Day Code (alpha displays only) ISO8601 Work Week (alpha and/or numeric displays) Julian Date (day of the year - alpha and/or numeric displays) Week of the Year (alpha displays only) Sunrise and/or Sunset Time (alpha and/or numeric displays) Military Shipping Code A-Z, no I or O (alpha displays only) Call 866-252-2704 or 316-530-8854

Download Spec Sheet

Additional Videos

Model Number	Number of Zones	Click on button to launch

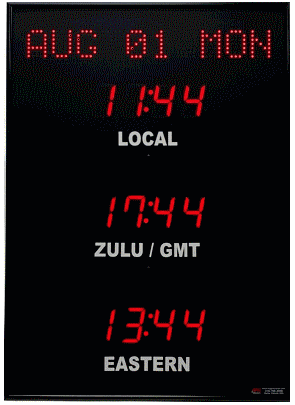

368K-G25G	3 Zone Clock with optional Green 2.5" LEDs for the time and optional Green 1.2" dot matrix LEDs for the date.

Color Options

Red is the standard color	Blue is optional	Green is optional
Photo Below is a 6610E-C with user changeable multi-color LEDs & frosted lens Change to red, blue, green, yellow, magenta, cyan or white any time you want
Closeup of the 6610E-C with with user changeable multi-color LEDs, frosted lens
