Style 561
USER CHANGEABLE COLOR is standard on all BRG LED digital clocks.
BRG Time Zone Clocks are accurate for life without the need for manual or external time updates. A GUI touch screen IR remote control is available to ease configuration.
Time Zone Display Fixed Style 561
Model 561R User Changeable with Multi-Color LEDs
Introducing BRG's New Time Commander Graphical Remote Control Programmer Option |
|
Even though our fixed zone time zone clocks come with an IR remote control to change LED zone color and brightness, BRG offers the Time Commander Option.
The Time Commander is only compatible with BRG Time Zone Clocks Manufactured after October 2018 |
|
561O User Changeable with Multi-Color LEDs
| The 561 series LED digital world
time zone clocks have 5 character dot matrix LED displays that alternate between
time, date and day of the week with white vinyl zone labels below. The 561
models can display 1 to 10 zones. More zones may be displayed than physically available by page flipping to another set of zones – For example, a 5 zone display can actually display up to 20 zones by page flipping through 4 sets of zones. Selected zones can remain constant while other zones change. |
 |
You may choose between 12 or 24 hour time formats. Date formats include numeric, three character alpha-numeric month, day of month, day of week, day of the year, and four digit year.
Call 866-252-2704 or 316-530-8854 Now with 3X more LED's than competing products! |
|
|
All products below are available on GSA Advantage except for the Blue LEDs. To inquire about GSA Pricing, call our sales team at 800-295-0220.
|
|
Available Options for the 561 Time Zone Clock |
||
| Computer Interface and Time Sync Options | ||
| Option | Unit | Description |
| EN | Per Clock | Ethernet Synchronization |
| USB | Per Clock | PC Communications (USB) |
| GP | Per Clock | GPS Atomic Time Receiver (Indoor or Outdoor Mount) |
| PC | Per Clock | PC Serial Port Interface (RS232/422 Converter) |
| SB | Per Clock | IRIG-B / SMPTE Receiver |
| WF | Per Clock | Wi-Fi Receiver |
| SR-ST | Per Clock | Serial Wire Sync Receive / Transmit |
| ST | Per Clock | Serial Wire Sync Transmit |
| Misc Options | ||
| Option | Unit | Description |
| AB | Per Clock | Auto Brightness |
| M16 | Per Zone | Add 1.8" Seconds display to one zone |
| M26 | Per Zone | Add 2.5" Seconds display to one zone |
| M46 | Per Zone | Add 2.5" Seconds display to one zone |
| RL | Per Zone | Removable Labels (Choose one or all zones) |
| TS | Per Clock | Add a temperature senor to one zone |
| TM | Per Clock | Add Timer and IR receiver to one zone |
| PM2 | Per Clock | Double Pole Mount for ceiling mounting the clock |
| Remote Control Options | ||
| Option | Description | |
| IR1 | The infrared remote control is included with the purchase of a time zone clock | |
| USB-IR | IR dongle for your PC that allows you to control the time zone clock can be substituted of the IR1 Remote | |
| TC | Time Commander graphical IR remote control | |
| Power Configuration Options | ||
| Option | Description | |
| P0812 | 12 ft. power cord with US Plug (Default) | |
| P0808 | 8 ft. power cord with US Plug | |
| P11 | 8.5 ft. power cord with UK Plug | |
| P16 | 8.5 ft. power cord with Euro Plug | |
| P12 | 6.5 ft. power cord with Australian Plug | |
The 561 Models
| Model | Maximum | Display | White Vinyl Label |
Inches | Download Spec Sheet |
|
GSA
|
Buy it online
|
|||
| Zones | Pages | Size | Digits | H | W | ||||||
| 1.2" User Changeable Multi-Color Dot Matrix LEDs - Viewing Distance is 30 ft. | |||||||||||
| 561B | 2 | 25 | 1.2" | 5 | 0.75" | 6.25 | 20.25 |  |
 |
 |
|

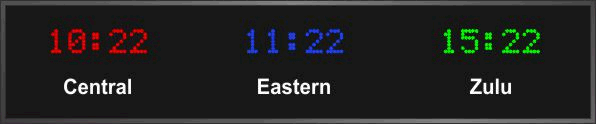

| 561C | 3 | 17 | 1.2" | 5 | 0.75" | 6.25 | 30.25 | |
 |
|
|

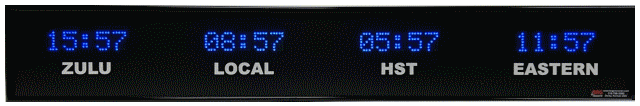

| 561D | 4 | 12 | 1.2" | 5 | 0.75" | 6.25 | 40.25 | |
 |
|
|
| 561E | 5 | 10 | 1.2" | 5 | 0.75" | 6.25 | 50.25 | |
 |
|
|
| 561F | 6 | 8 | 1.2" | 5 | 0.75" | 6.25 | 60.25 | |
 |
|
|
| 561G | 7 | 7 | 1.2" | 5 | 0.75" | 6.25 | 70.25 | |
 |
|
|
| 561H | 8 | 6 | 1.2" | 5 | 0.75" | 6.25 | 80.25 | |
 |
|
|
| 561I | 9 | 5 | 1.2" | 5 | 0.75" | 6.25 | 90.25 | |
 |
|
|
| 561J | 10 | 5 | 1.2" | 5 | 0.75" | 6.25 | 96.25 | |
 |
|
|
| 2.0" User Changeable Multi-Color Dot Matrix LEDs - Viewing Distance is 70 ft. | |||||||||||

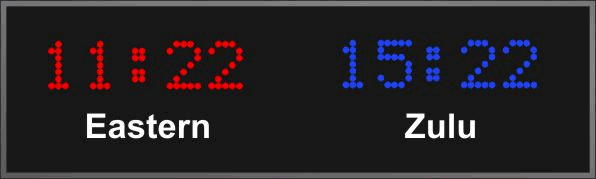

| 561L | 2 | 25 | 2.0" | 5 | 1.0" | 7.25 | 24.25 | |
 |
|
|

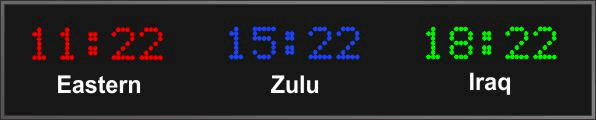

| 561M | 3 | 17 | 2.0" | 5 | 1.0" | 7.25 | 36.25 | |
 |
|
|
| 561N | 4 | 12 | 2.0" | 5 | 1.0" | 7.25 | 48.25 | |
 |
|
|
| 561O | 5 | 10 | 2.0" | 5 | 1.0" | 7.25 | 60.25 | |
|
|
|
| 561P | 6 | 8 | 2.0" | 5 | 1.0" | 7.25 | 72.25 | |
 |
|
|
| 561Q | 7 | 7 | 2.0" | 5 | 1.0" | 7.25 | 84.25 | |
 |
|
|
| 561R | 8 | 6 | 2.0" | 5 | 1.0" | 7.25 | 96.25 | |
|
|
|
BRG Time Zone Clocks can be configured to display the following special information when specified at the time of purchase. Not all features can be included in every clock due to memory constraints or operational conflicts:
