Style 581

USER CHANGEABLE COLOR is standard on all BRG LED digital clocks.

BRG Time Zone Clocks are accurate for life without the need for manual or external time updates.  A GUI touch screen IR remote control is available to ease configuration.

Time Zone Display Fixed Style 581


Model 581M with Sample Zones


Introducing BRG's New Time Commander Graphical Remote Control Programmer Option


Click for more information

Even though our fixed zone time zone clocks come with an IR remote control to change LED zone color and brightness, BRG offers the Time Commander Option.

  • Allows you to change the:
    • LED Colors
    • Intensity (global or by zone)
  • Use on multiple time zone clocks
  • Easy to use
  • Eliminates the need for a computer interface
  • Wireless IR remote
  • Color touch screen for ease
  • Large 7 inch color LCD touch screen display
  • Rechargeable Battery

The Time Commander is only compatible with BRG Time Zone Clocks Manufactured after October 2018



The 581 series LED digital world time zone clocks have 10 character dot matrix LED displays that alternate between time, date and day of the week with white vinyl zone labels below. The 581 models can display 1 to 8 zones.

More zones may be displayed than physically available by page flipping to another set of zones – For example, a 5 zone display can actually display up to 20 zones by page flipping through 4 sets of zones.  Selected zones can remain constant while other zones change.

You may choose between 12 or 24 hour time formats. Date formats include numeric, three character alpha-numeric month, day of month, day of week, day of the year, and four digit year.

  • All zones are precisely synchronized with one another.
  • Supports Page Flipping to display more zones than physical zone positions available.
  • Dynamic digital lettering can include fixed titles and/or date, day, day of the year, etc.
  • Factory synchronized with the U.S. Atomic Clock.
  • Accurate for Life – no manual adjustments are required for the life of the display, no sync wires, no radios, no problems.
  • Models with digital zone labels can page flip to display more zones than physically available.
  • Time and configuration are maintained during shipping and power outages
  • Operating Voltage: 90-265 volts AC.
  • Many control, sync methods, power and color options are available
  • Includes BRG's F5 Anodized Black Aluminum Frame  Learn More

Now with 3X more LED's than competing products!

Call 866-252-2704 or 316-530-8854





Available Options for the 581 Time Zone Clock
Computer Interface and Time Sync Options
Option Unit Description
EN Per Clock Ethernet Synchronization
USB Per Clock PC Communications (USB)
GP Per Clock GPS Atomic Time Receiver (Indoor or Outdoor Mount)
PC Per Clock PC Serial Port Interface (RS232/422 Converter)
SB Per Clock IRIG-B / SMPTE Receiver
WF Per Clock Wi-Fi Receiver
SR-ST Per Clock Serial Wire Sync Receive / Transmit
ST Per Clock Serial Wire Sync Transmit

Misc Options
Option Unit Description
AB Per Clock Auto Brightness
M16 Per Zone Add 1.8" Seconds display to one zone
M26 Per Zone Add 2.5" Seconds display to one zone
M46 Per Zone Add 2.5" Seconds display to one zone
RL Per Zone Removable Labels (Choose one or all zones)
TS Per Clock Add a temperature senor to one zone
TM Per Clock Add Timer and IR receiver to one zone
PM2 Per Clock Double Pole Mount for ceiling mounting the clock

Remote Control Options
Option Description
IR1 The infrared remote control is included with the purchase of a time zone clock
USB-IR IR dongle for your PC that allows you to control the time zone clock can be substituted of the IR1 Remote
TC Time Commander graphical IR remote control

Power Configuration Options
Option Description
P0812 12 ft. power cord with US Plug (Default)
P0808 8 ft. power cord with US Plug
P11 8.5 ft. power cord with UK Plug
P16 8.5 ft. power cord with Euro Plug
P12 6.5 ft. power cord with Australian Plug



The 581 Models

Model Maximum Display LED Color

White Vinyl Label

 Viewing Distance Inches Photo Video Buy Online
Zones Pages Size Digits H W

1.2" User Changeable Multi-Color Dot Matrix LEDs

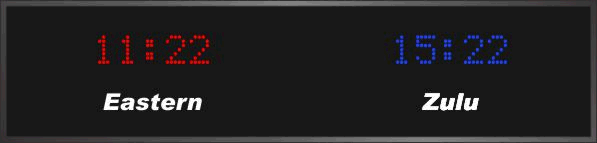

581B 2 12 1.2" 10 Red 0.75" 30 ft. 6.25 26.25

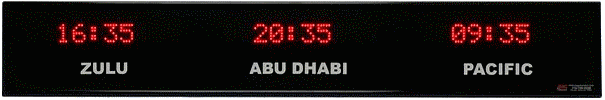

581C 3 8 1.2" 10 Red 0.75" 30 ft. 6.25 39.25
581D 4 6 1.2" 10 Red 0.75" 30 ft. 6.25 52.25
581E 5 5 1.2" 10 Red 0.75" 30 ft. 6.25 65.25
581F 6 4 1.2" 10 Red 0.75" 30 ft. 6.25 78.25
581G 7 3 1.2" 10 Red 0.75" 30 ft. 6.25 91.25
581H 8 3 1.2" 10 Red 0.75" 30 ft. 6.25 96.25

2.0" User Changeable Multi-Color Dot Matrix LEDs

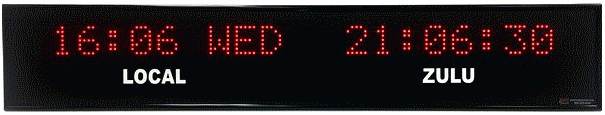

581J 2 12 2.0" 10 Red 1.0" 70 ft. 7.25 40.25
581K 3 8 2.0" 10 Red 1.0" 70 ft. 7.25 60.25
581L 4 6 2.0" 10 Red 1.0" 70 ft. 7.25 80.25
581M 5 5 2.0" 10 Red 1.0" 70 ft. 7.25 96.25


BRG Time Zone Clocks can be configured to display the following special information when specified at the time of purchase. Not all features can be included in every clock due to memory constraints or operational conflicts:
  • ATO Military Day Code (alpha displays only)
  • ISO8601 Work Week (alpha and/or numeric displays)
  • Julian Date (day of the year - alpha and/or numeric displays)
  • Week of the Year (alpha displays only)
  • Sunrise and/or Sunset Time (alpha and/or numeric displays)
  • Military Shipping Code A-Z, no I or O (alpha displays only)

Call 866-252-2704 or 316-530-8854

Download Spec Sheet

Additional Videos

Model Number Number of Zones
Click on button to launch
581KR 3 Zone Clock with red dot matrix LEDs
