Style 662

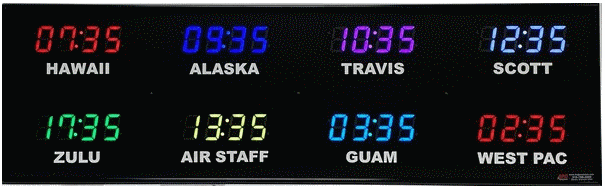

USER CHANGEABLE COLOR is standard on all BRG LED digital clocks.
Model 662AN with user changeable multi-color LEDs
BRG Time Zone Clocks are accurate for life without the need for manual or external time updates. A GUI touch screen IR remote control is available to ease configuration.
Introducing BRG's New Time Commander Graphical Remote Control Programmer Option |
|
Even though our fixed zone time zone clocks come with an IR remote control to change LED zone color and brightness, BRG offers the Time Commander Option.
The Time Commander is only compatible with BRG Time Zone Clocks Manufactured after October 2018
|
|

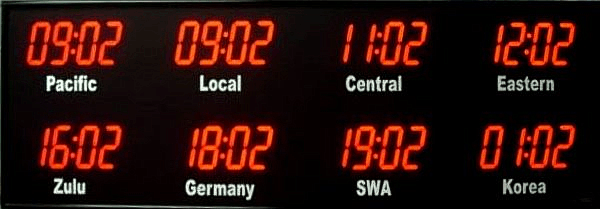

Time Zone Display Style 662
662AE with User Changeable Multi-Color LEDs

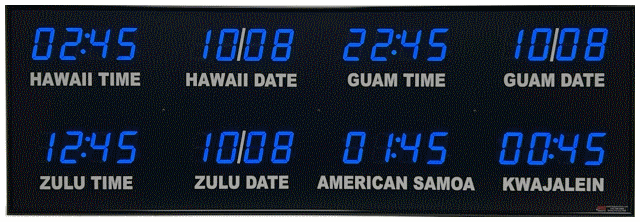

The 662 series time zone clocks have bar-segment LED time with white vinyl zone labels below the time of each zone. The 662 models can display 4 to 24 time zones.
For easy clock management, an infrared (IR) remote control is included with every 662 model. You can specify a radio (RF) remote, if preferred for no additional charge. Call 866-252-2704 or 316-530-8854 Now with 3X more LED's than competing products!
|
 |
Available Options for the 662 Time Zone Clock |
||
| Computer Interface and Time Sync Options | ||
| Option | Unit | Description |
| EN | Per Clock | Ethernet Synchronization |
| USB | Per Clock | PC Communications (USB) |
| GP | Per Clock | GPS Atomic Time Receiver (Indoor or Outdoor Mount) |
| PC | Per Clock | PC Serial Port Interface (RS232/422 Converter) |
| SB | Per Clock | IRIG-B / SMPTE Receiver |
| WF | Per Clock | Wi-Fi Receiver |
| SR-ST | Per Clock | Serial Wire Sync Receive / Transmit |
| ST | Per Clock | Serial Wire Sync Transmit |
| Misc Options | ||
| Option | Unit | Description |
| AB | Per Clock | Auto Brightness |
| M16 | Per Zone | Add 1.8" Seconds display to one zone |
| M26 | Per Zone | Add 2.5" Seconds display to one zone |
| M46 | Per Zone | Add 2.5" Seconds display to one zone |
| RL | Per Zone | Removable Labels (Choose one or all zones) |
| TS | Per Clock | Add a temperature senor to one zone |
| TM | Per Clock | Add Timer and IR receiver to one zone |
| PM2 | Per Clock | Double Pole Mount for ceiling mounting the clock |
| Remote Control Options | ||
| Option | Description | |
| IR1 | The infrared remote control is included with the purchase of a time zone clock | |
| USB-IR | IR dongle for your PC that allows you to control the time zone clock can be substituted of the IR1 Remote | |
| TC | Time Commander graphical IR remote control | |
| Power Configuration Options | ||
| Option | Description | |
| P0812 | 12 ft. power cord with US Plug (Default) | |
| P0808 | 8 ft. power cord with US Plug | |
| P11 | 8.5 ft. power cord with UK Plug | |
| P16 | 8.5 ft. power cord with Euro Plug | |
| P12 | 6.5 ft. power cord with Australian Plug | |
The 662 Models
| Model | Zones | Grid Layout | Time Displays | Label Size White Vinyl | Inches |
Download Spec Sheet | GSA Advantage |
|
Video
|
|
| H | W | |||||||||
| 1.8" Bar Segment LEDs & 2 x Grids - Viewing Distance 40 ft | ||||||||||

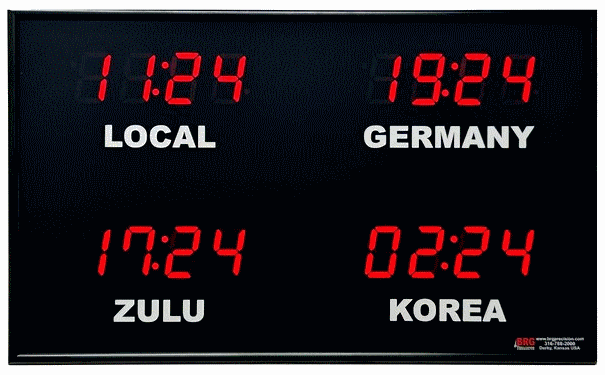

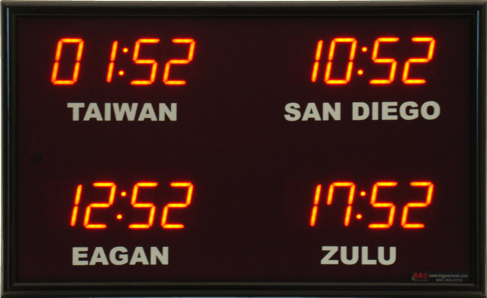

| 662S |
4
|
2x2 | 1.8" | 0.75" | 12.25 | 20.25 |
|
 |
 |
 |
| 662A |
6
|

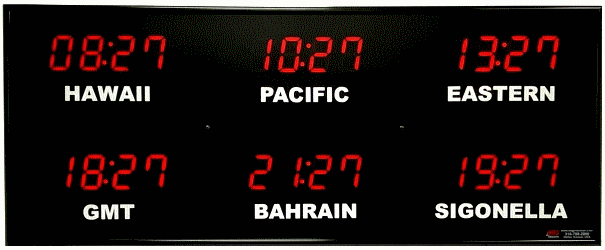

2x3 | 1.8" | 0.75" | 12.25 | 30.25 | |
|
|
|

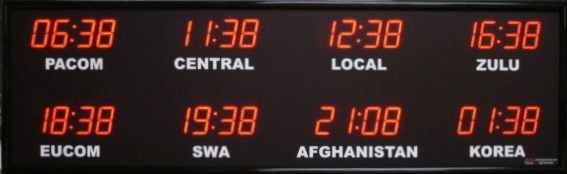

| 662B |
8
|
2x4 | 1.8" | 0.75" | 12.25 | 40.25 | |
|
|
|

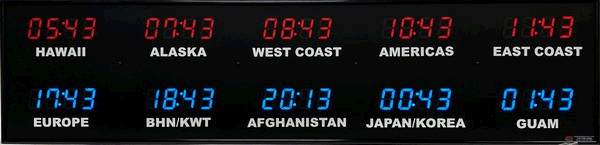

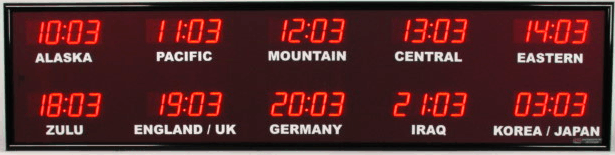

| 662C |
10
|
2x5 | 1.8" | 0.75" | 12.25 | 50.25 | |
|
|
|

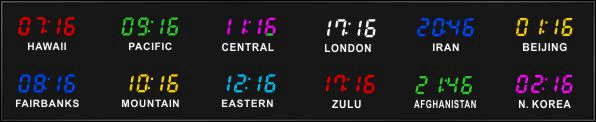

| 662AA |
12
|
2X6 | 1.8" | 0.75" | 12.25 | 60.25 | |
|
|
|

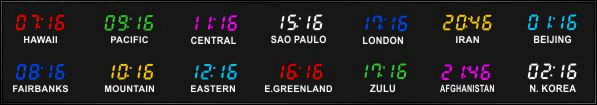

| 662AJ |
14
|
2X7 | 1.8" | 0.75" | 12.25 | 70.25 | |
|
|
|
| 662AK |
16
|
2X8 | 1.8" | 0.75" | 12.25 | 80.25 | |
|
|
|
| 662AL |
18
|
2X9 | 1.8" | 0.75" | 12.25 | 90.25 | |
|
|
|
| 1.8" Bar Segment LEDs & 3 x Grids - Viewing Distance 40 ft. | ||||||||||
| 662AD |
6
|

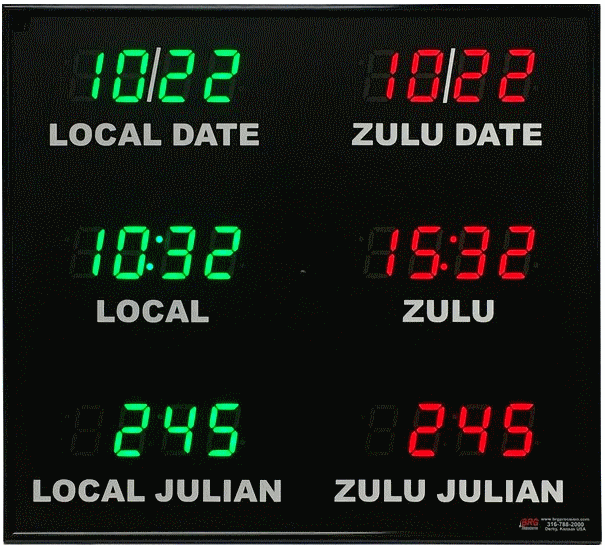

3X2 | 1.8" | 0.75" | 18.25 | 20.25 | |
|
 |
|

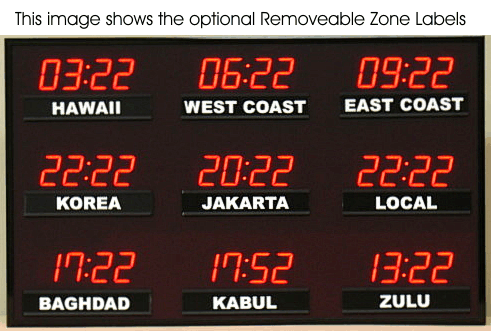

| 662D |
9
|
3x3 | 1.8" | 0.75" | 18.25 | 30.25 | |
|
|
|

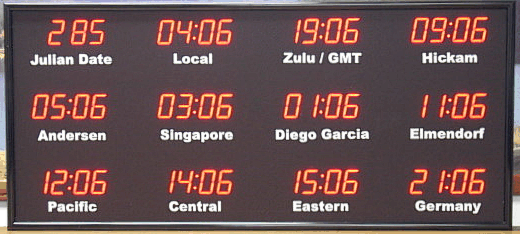

| 662E |
12
|
3x4 | 1.8" | 0.75" | 18.25 | 40.25 | |
|
|
|

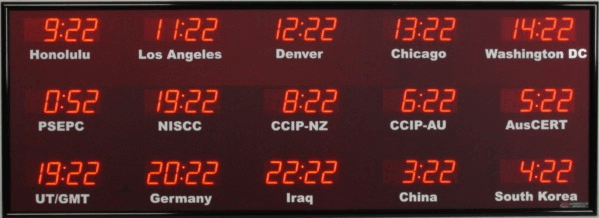

| 662F |
15
|
3x5 | 1.8" | 0.75" | 18.25 | 50.25 | |
|
|
|

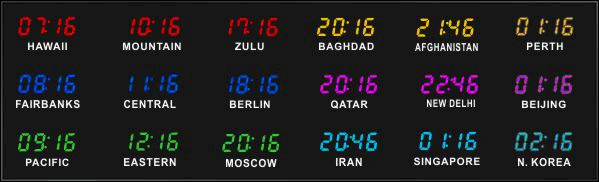

| 662AM |
18
|
3X6 | 1.8" | 0.75" | 18.25 | 60.25 | |
|
|
|
| 662AN |
21
|
3X7 | 1.8" | 0.75" | 18.25 | 70.25 | |
|
|
|

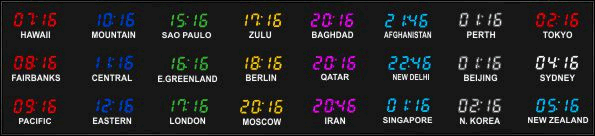

| 662AO |
24
|
3X8 | 1.8" | 0.75" | 18.25 | 80.25 | |
|
|
|
| 1.8" Bar Segment LEDs & 4 x Grids - Viewing Distance 40 ft. | ||||||||||

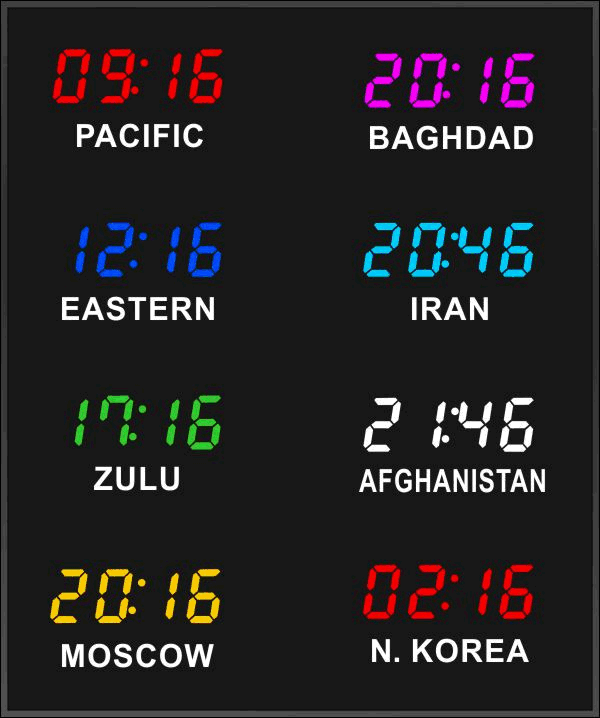

| 662V |
8
|
4x2 | 1.8" | 0.75" | 24.25 | 20.25 | |
|
 |
|
| 662W |
12
|

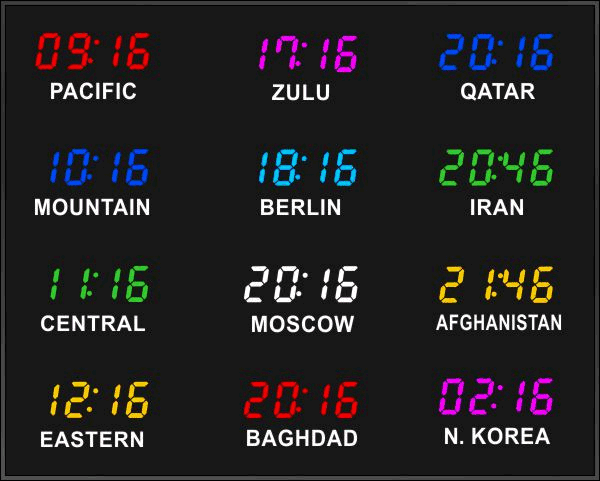

4x3 | 1.8" | 0.75" | 24.25 | 30.25 | |
|
|
|
| 662AP |
16
|

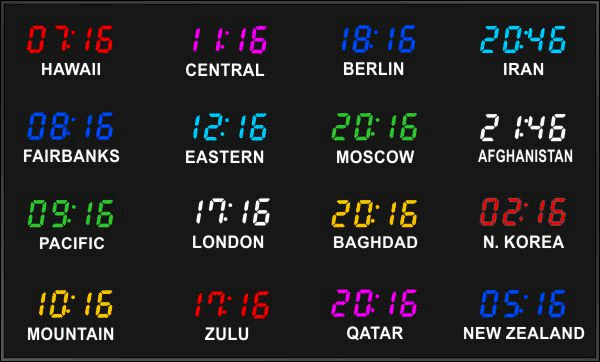

4X4 | 1.8" | 0.75" | 24.25 | 40.25 | |
|
|
|

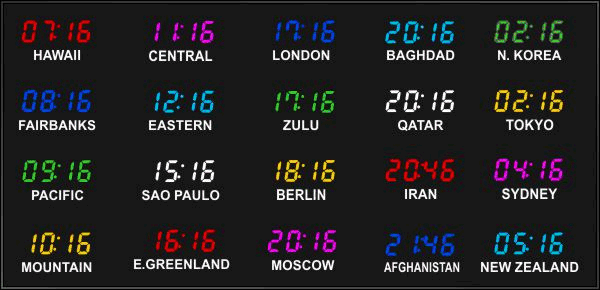

| 662AQ |
20
|
4X5 | 1.8" | 0.75" | 24.25 | 50.25 | |
|
|
|

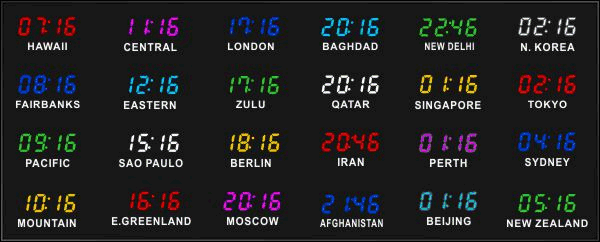

| 662AR |
24
|
4X6 | 1.8" | 0.75" | 24.25 | 60.25 | |
|
|
|
| 1.8" Bar Segment LEDs & 5 x Grids - Viewing Distance 40 ft | ||||||||||

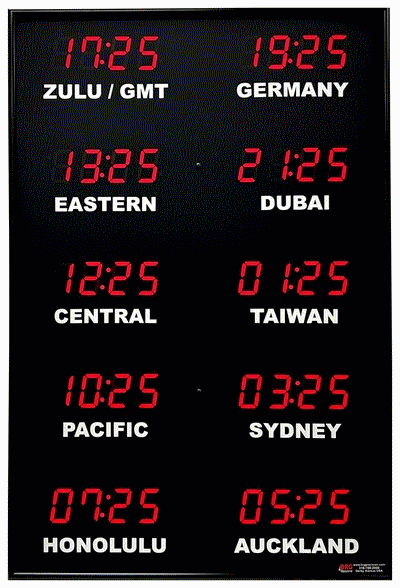

| 662AG |
10
|
5X2 | 1.8" | 0.75" | 30.25 | 20.25 | |
|
 |
|
| 662AS |
15
|

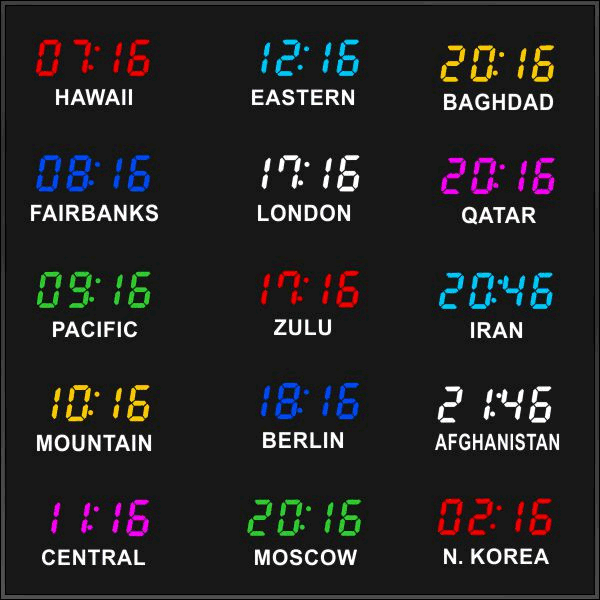

5X3 | 1.8" | 0.75" | 30.25 | 30.25 | |
|
|
|

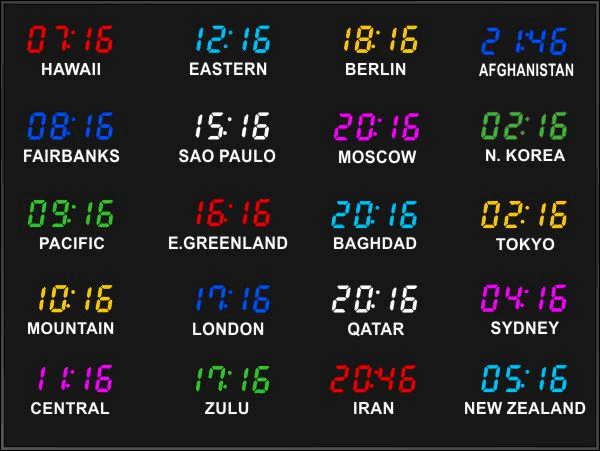

| 662AT |
20
|
5X4 | 1.8" | 0.75" | 30.25 | 40.25 | |
|
|
|
| 1.8" Bar Segment LEDs & 6 x Grids- Viewing Distance 40 ft | ||||||||||

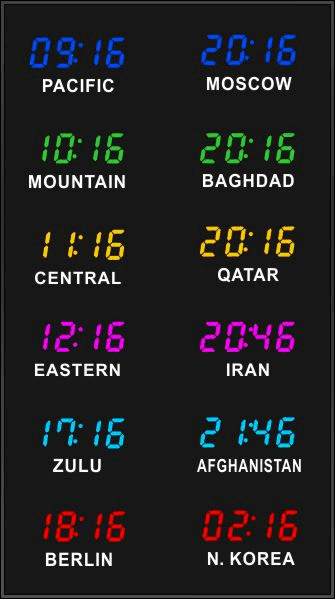

| 662AU |
12
|
6X2 | 1.8" | 0.75" | 36.25 | 20.25 | |
|
|
|

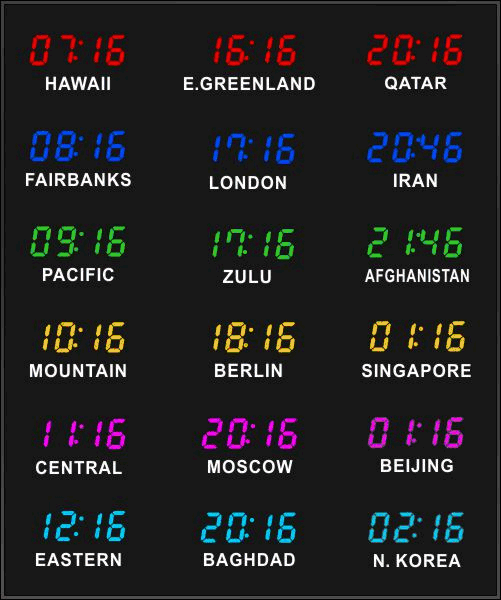

| 662AV |
18
|
6X3 | 1.8" | 0.75" | 36.25 | 30.25 | |
|
|
|

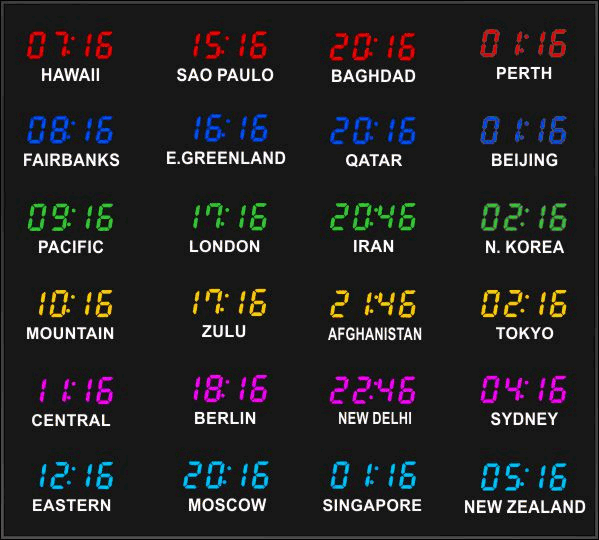

| 662AW |
24
|
6X4 | 1.8" | 0.75" | 36.25 | 40.25 | |
|
|
|
| 1.8" Bar Segment LEDs & 7 x Grids - Viewing Distance 40 ft | ||||||||||
| 662AX |
14
|
7X2 | 1.8" | 0.75" | 42.25 | 20.25 | |
|
|
|

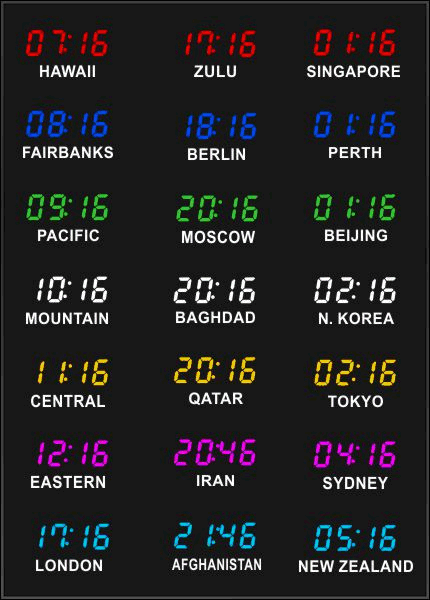

| 662AY |
21
|
7X3 | 1.8" | 0.75" | 42.25 | 30.25 | |
|
|
|
| 1.8" Bar Segment LEDs & 8 x Grids - Viewing Distance 40 ft | ||||||||||

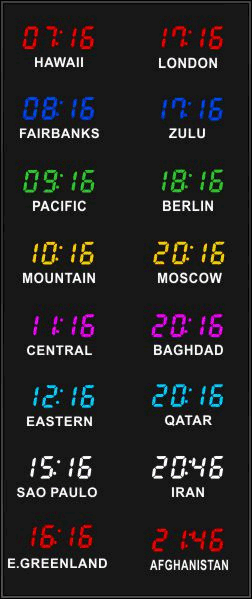

| 662AZ |
16
|
8X2 | 1.8" | 0.75" | 48.25 | 20.25 | |
|
|
|

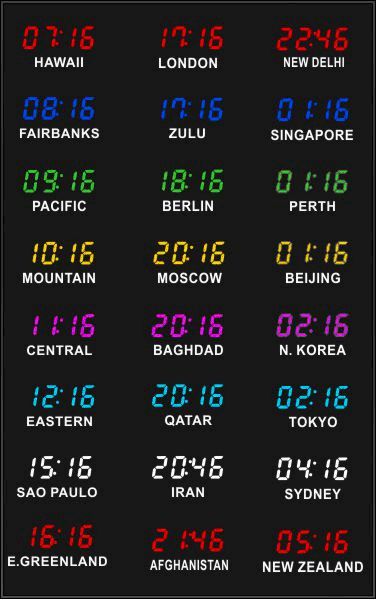

| 662BA |
24
|
8X3 | 1.8" | 0.75" | 48.25 | 30.25 | |
|
|
|
| 1.8" Bar Segment LEDs & 9 x Grids - Viewing Distance 40 ft | ||||||||||

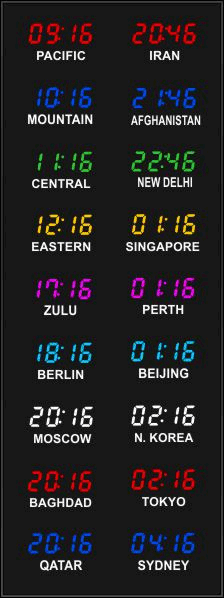

| 662BB |
18
|
9X2 | 1.8" | 0.75" | 54.25 | 20.25 | |
|
|
|
Call 866-252-2704 or 316-530-8854
|
||||||||||
| Model | Zones | Grid Layout | Time Displays | Label Size White Vinyl | Inches |
Download Spec Sheet | GSA Advantage |
|
Video
|
|
| H | W | |||||||||
|
2.5" Bar Segment LEDs & 2 x Grids - Viewing Distance 75 ft
|
||||||||||
| 662T |
4
|
2x2 | 2.5" | 1.00" | 16.25 | 24.25 |
|
|
|
|
| 662G |
6
|
2x3 | 2.5" | 1.00" | 16.25 | 36.25 | |
|
|
|

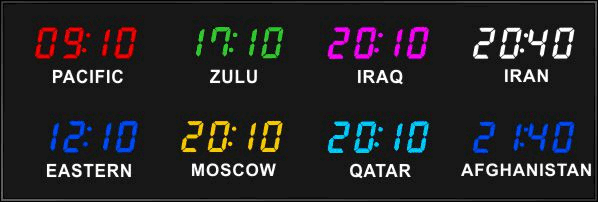

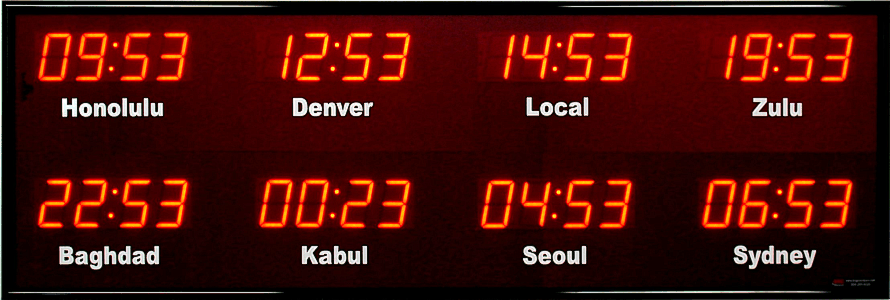

| 662H |
8
|
2x4 | 2.5" | 1.00" | 16.25 | 48.25 | |
|
|
|

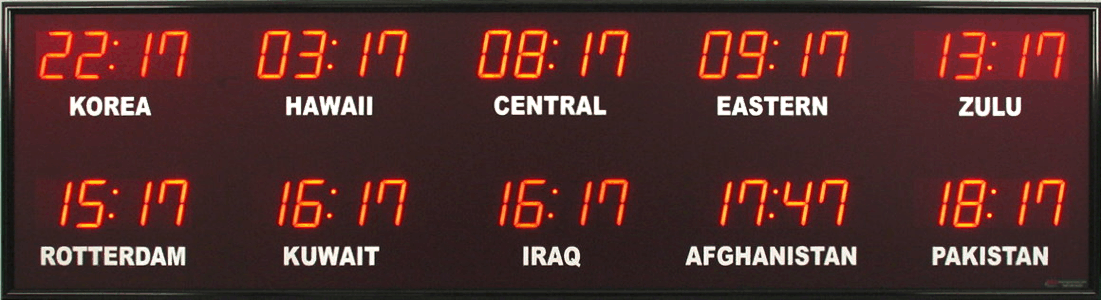

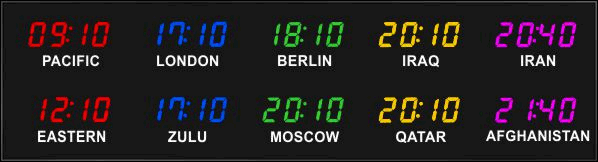

| 662I |
10
|
2x5 | 2.5" | 1.00" | 16.25 | 60.25 | |
|
|
|

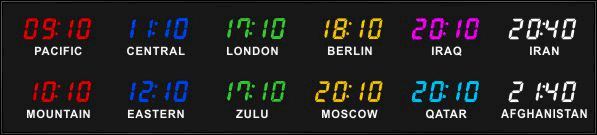

| 662AB |
12
|
2X6 | 2.5" | 1.00" | 16.25 | 72.25 | |
|
 |
|

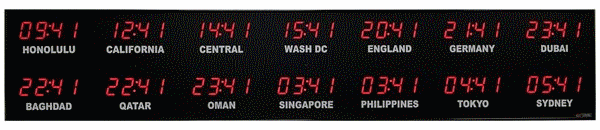

| 662BC |
14
|
2X7 | 2.5" | 1.00" | 16.25 | 84.25 | |
|
 |
|

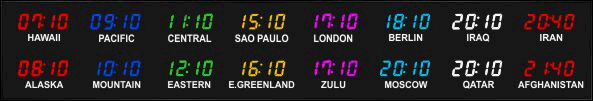

| 662BD |
16
|
2X8 | 2.5" | 1.00" | 16.25 | 96.25 | |
|
 |
|
| 2.5" Bar Segment LEDs & 3 x Grids - Viewing Distance 75 ft | ||||||||||
| 662AE |
6
|
3X2 | 2.5" | 1.00" | 24.25 | 24.25 | |
|
|
|

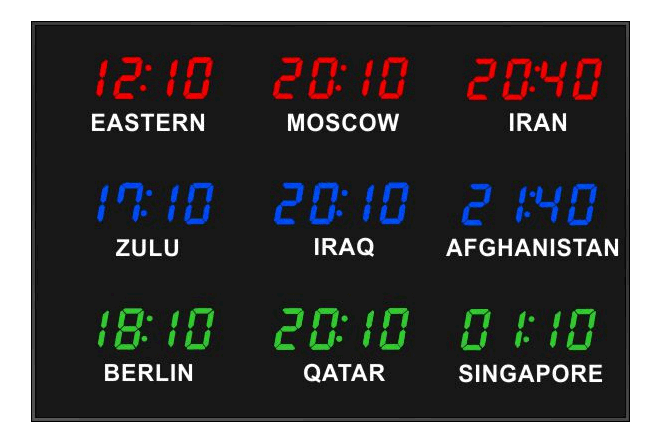

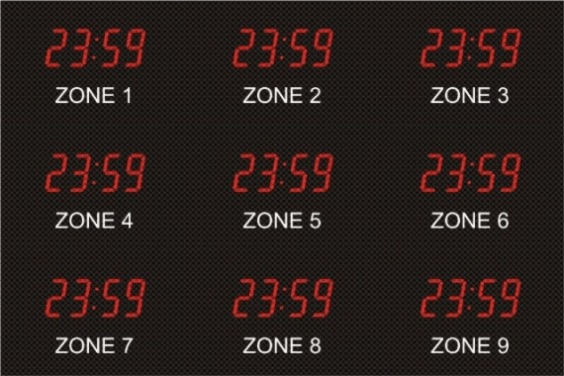

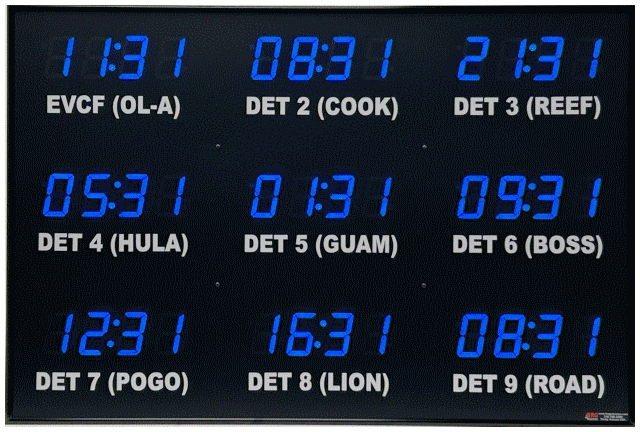

| 662J |
9
|
3x3 | 2.5" | 1.00" | 24.25 | 36.25 | |
|
|
|

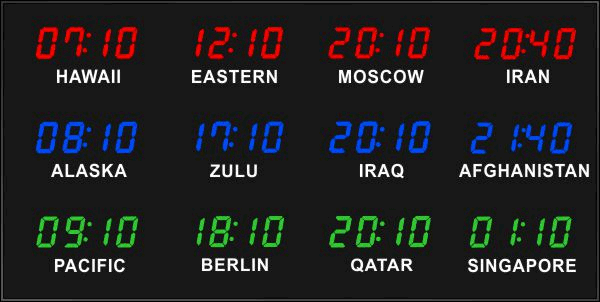

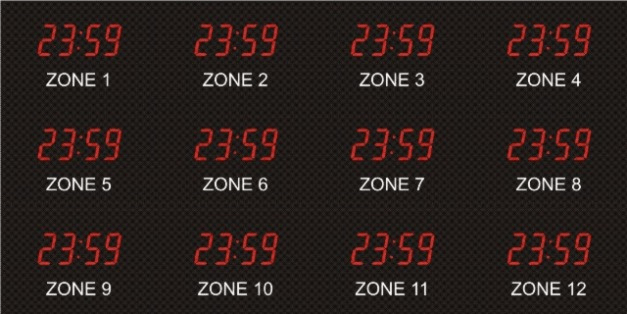

| 662K |
12
|
3x4 | 2.5" | 1.00" | 24.25 | 48.25 | |
|
|
|

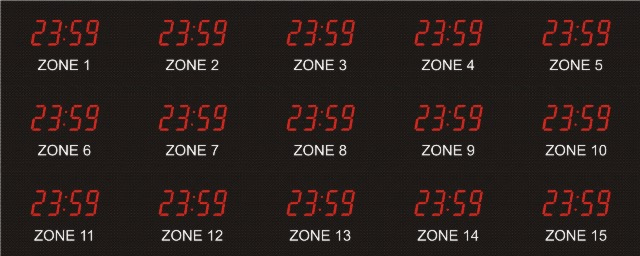

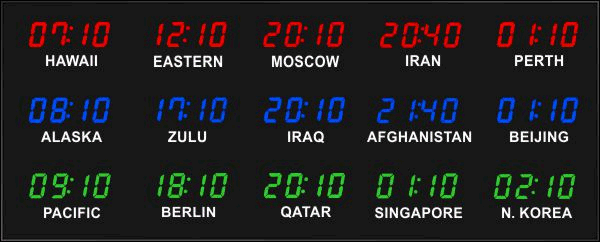

| 662L |
15
|
3x5 | 2.5" | 1.00" | 24.25 | 60.25 | |
|
|
|

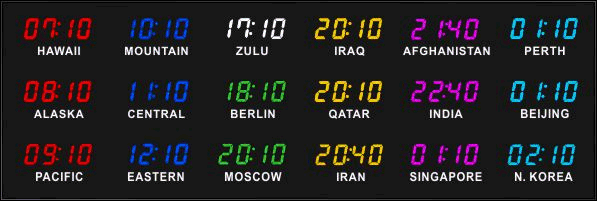

| 662BE |
18
|
3X6 | 2.5" | 1.00" | 24.25 | 72.25 | |
|
 |
|

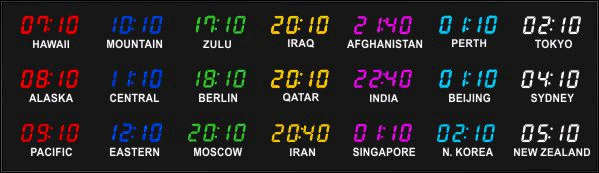

| 662BF |
21
|
3X7 | 2.5" | 1.00" | 24.25 | 84.25 | |
|
 |
|

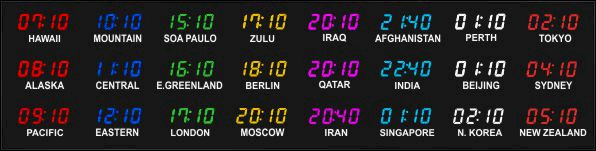

| 662BG |
24
|
3X8 | 2.5" | 1.00" | 24.25 | 96.25 | |
|
 |
|
| 2.5" Bar Segment LEDs & 4 x Grids - Viewing Distance 75 ft | ||||||||||

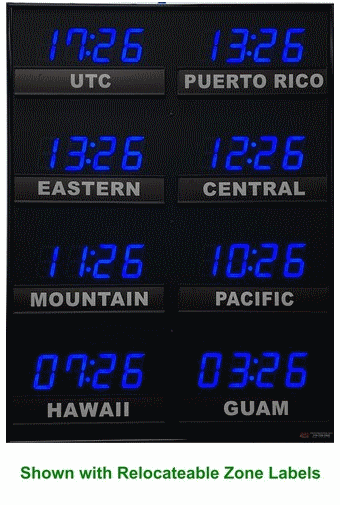

| 662X |
8
|
4x2 | 2.5" | 1.00" | 32.25 | 24.25 | |
|
 |
|
| 662Y |
12
|
4x3 | 2.5" | 1.00" | 32.25 | 36.25 | |
|
 |
|

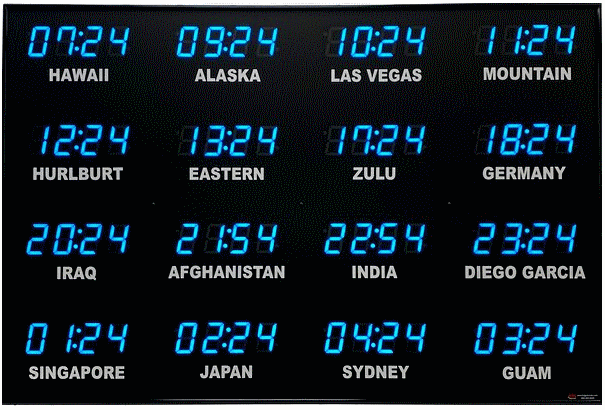

| 662BH |
16
|
4X4 | 2.5" | 1.00" | 32.25 | 48.25 | |
|
 |
|

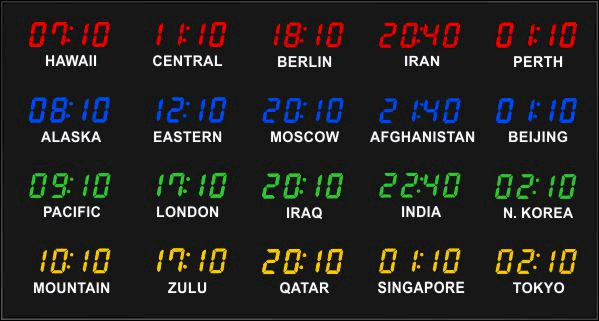

| 662BI |
20
|
4X5 | 2.5" | 1.00" | 32.25 | 60.25 | |
|
 |
|

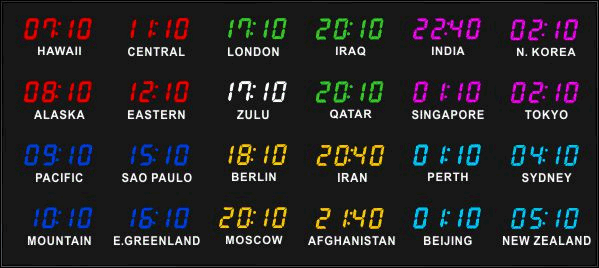

| 662BJ |
24
|
4X6 | 2.5" | 1.00" | 32.25 | 72.25 | |
|
 |
|
| 2.5" Bar Segment LEDs & 5 x Grids - Viewing Distance 75 ft | ||||||||||
| 662AH |
10
|

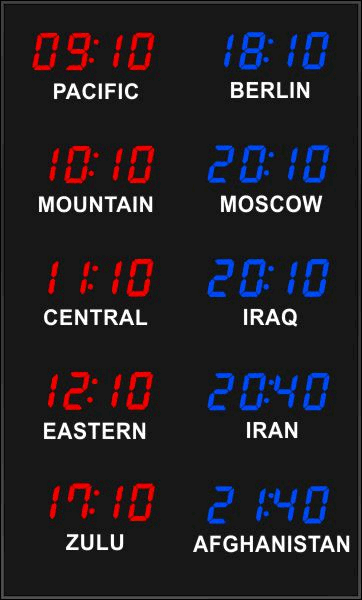

5X2 | 2.5" | 1.00" | 40.25 | 24.25 | |
|
 |
|

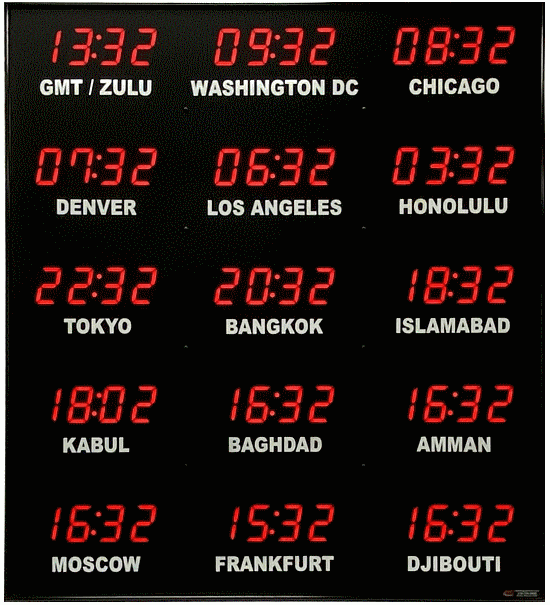

| 662BK |
15
|
5X3 | 2.5" | 1.00" | 40.25 | 36.25 | |
|
 |
|

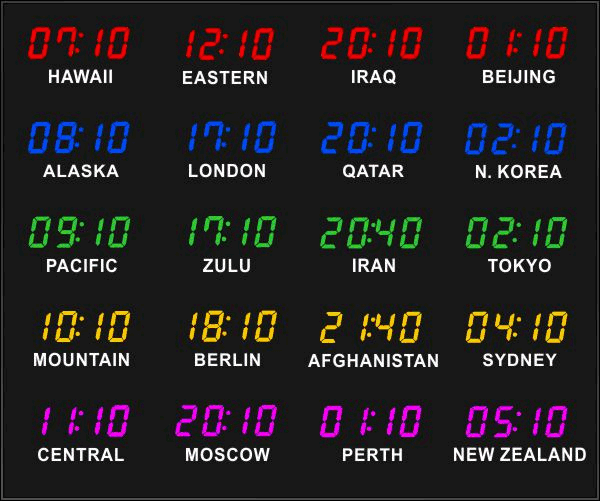

| 662BL |
20
|
5X4 | 2.5" | 1.00" | 40.25 | 48.25 | |
|
 |
|
| 2.5" Bar Segment LEDs & 6 x Grids - Viewing Distance 75 ft | ||||||||||

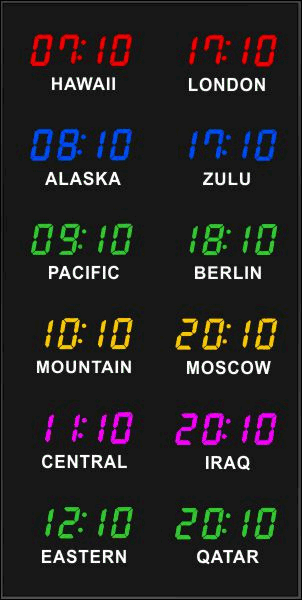

| 662BM |
12
|
6X2 | 2.5" | 1.00" | 48.25 | 24.25 | |
|
 |
|

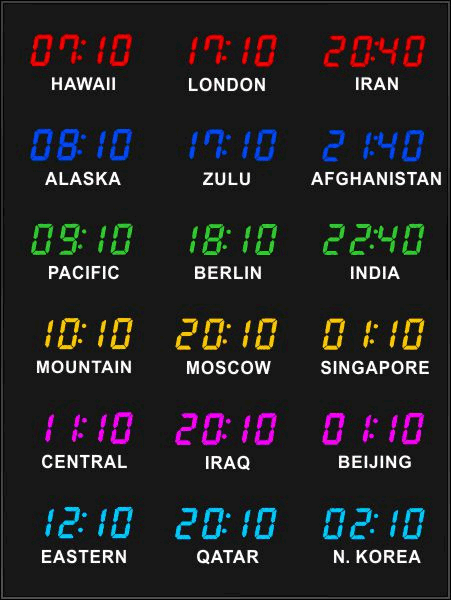

| 662BN |
18
|
6X3 | 2.5" | 1.00" | 48.25 | 36.25 | |
|
 |
|

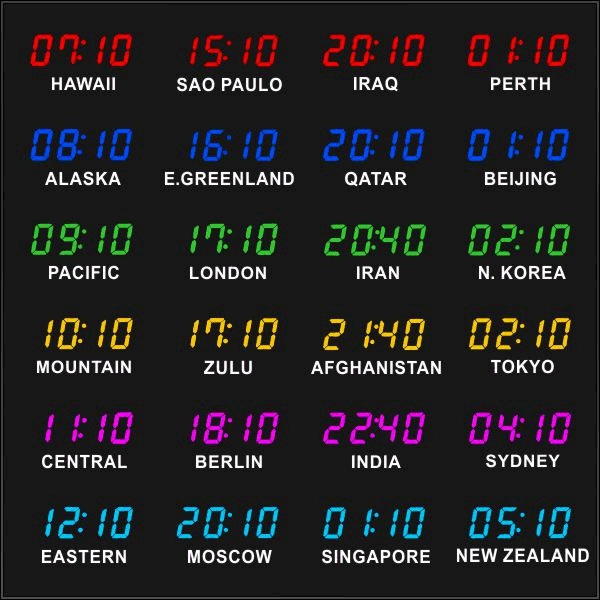

| 662BO |
24
|
6X4 | 2.5" | 1.00" | 48.25 | 48.25 | |
|
 |
|
| 2.5" Bar Segment LEDs & 7 x Grids - Viewing Distance 75 ft | ||||||||||

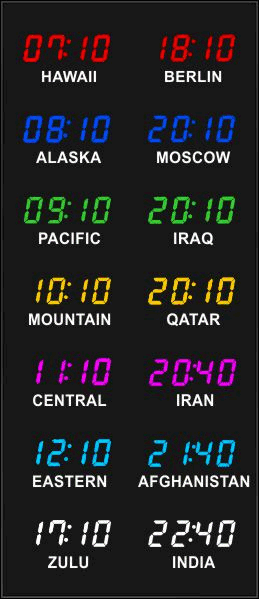

| 662BP |
14
|
7X2 | 2.5" | 1.00" | 56.25 | 24.25 | |
|
 |
|

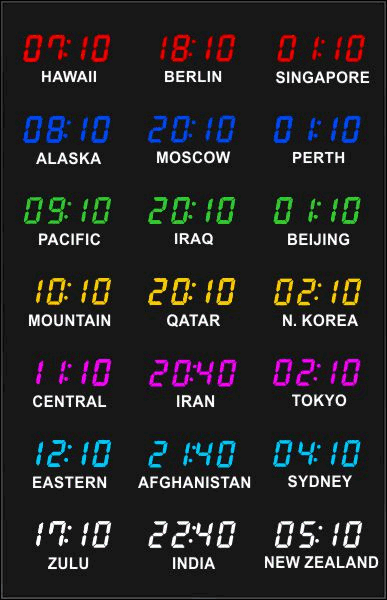

| 662BQ |
21
|
7X3 | 2.5" | 1.00" | 56.25 | 36.25 | |
|
 |
|
| 2.5" Bar Segment LEDs & 8 x Grids - Viewing Distance 75 ft | ||||||||||

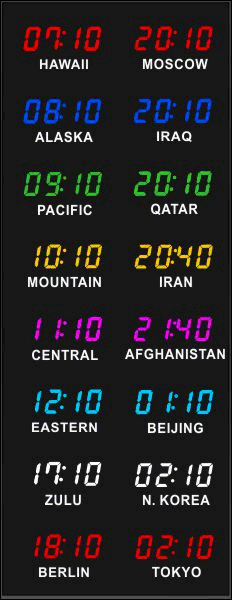

| 662BR |
16
|
8X2 | 2.5" | 1.00" | 64.25 | 24.25 | |
|
 |
|

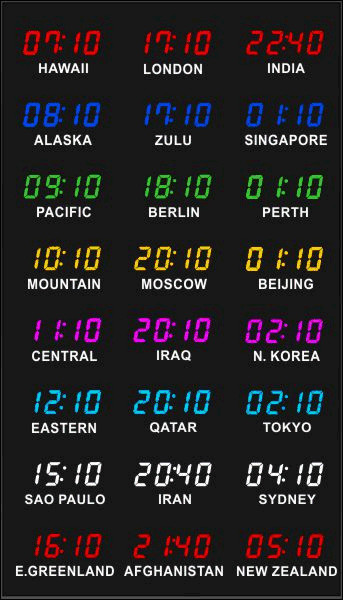

| 662BS |
24
|
8X3 | 2.5" | 1.00" | 64.25 | 36.25 | |
|
 |
|
Call 866-252-2704 or 316-530-8854
|
||||||||||
| Model | Zones | Grid Layout | Time Displays | Label Size White Vinyl | Inches | Download Spec Sheet | GSA Advantage |
|
Video
|
|
| H | W | |||||||||
|
4.0" Bar Segment LEDs & 2 x Grids - Viewing Distance 100 ft
|
||||||||||
| 662U |
4
|

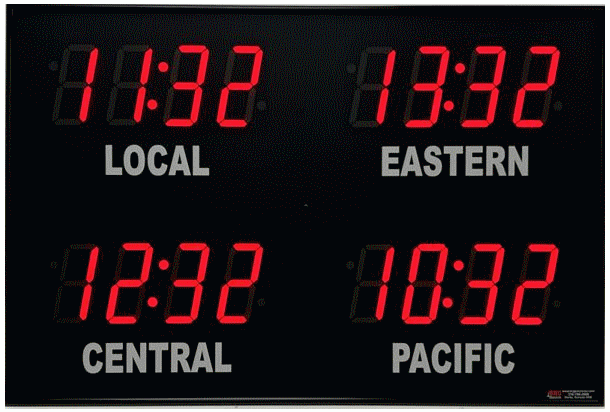

2x2 | 4.0" | 1.50" | 20.25 | 30.25 | |
|
 |
|

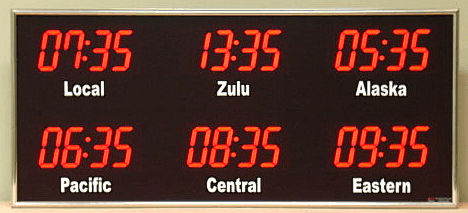

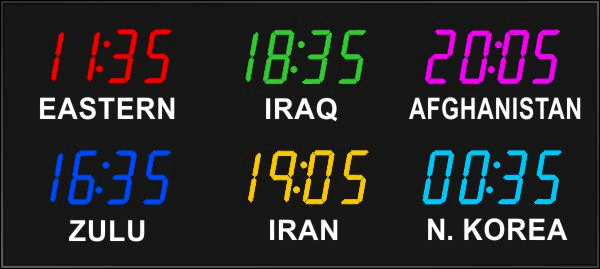

| 662M |
6
|
2x3 | 4.0" | 1.50" | 20.25 | 45.25 | |
|
|
|

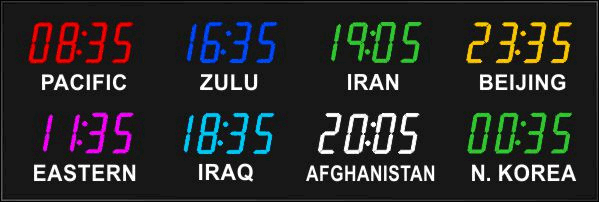

| 662N |
8
|
2x4 | 4.0" | 1.50" | 20.25 | 60.25 | |
|
|
|

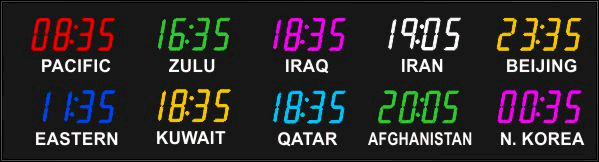

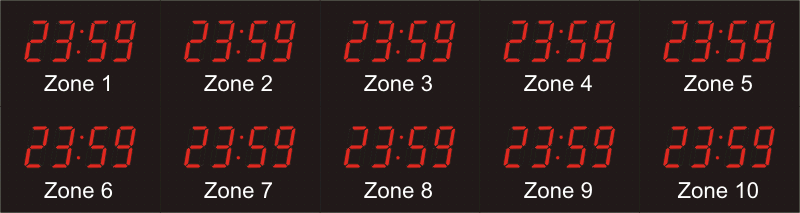

| 662O |
10
|
2x5 | 4.0" | 1.50" | 20.25 | 75.25 | |
|
|
|
| 662AC |
12
|
2X6 | 4.0" | 1.50" | 20.25 | 90.25 | |
|
 |
|
| 4.0" Bar Segment LEDs & 3 x Grids - Viewing Distance 100 ft | ||||||||||

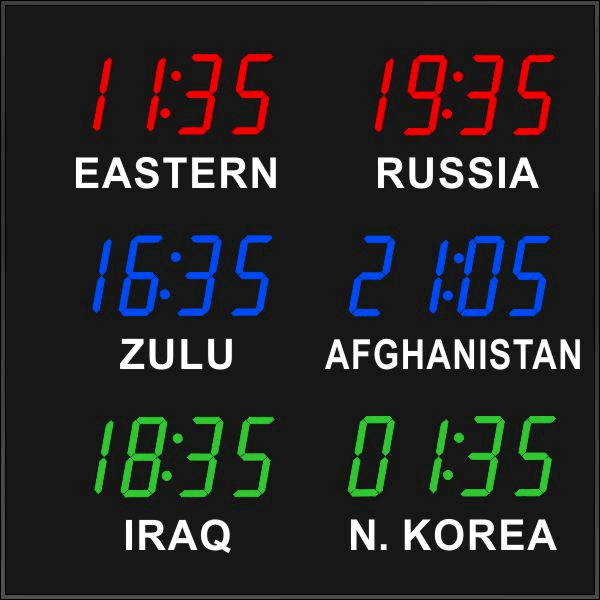

| 662AF |
6
|
3X2 | 4.0" | 1.50" | 30.25 | 30.25 | |
|
 |
|

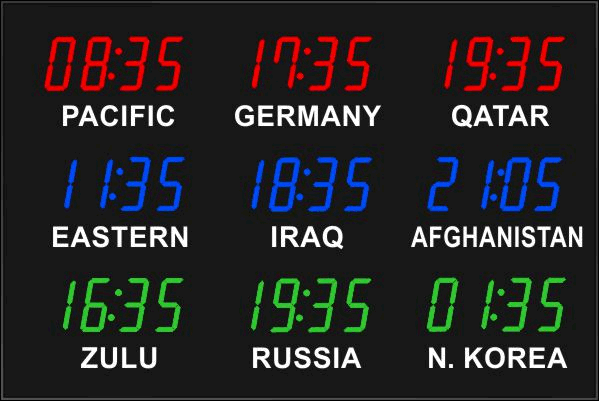

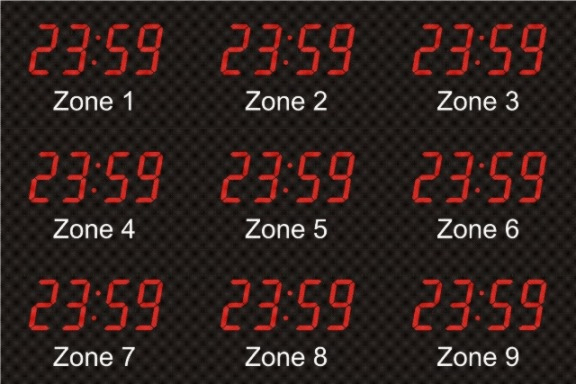

| 662P |
9
|
3x3 | 4.0" | 1.50" | 30.25 | 45.25 | |
|
|
|

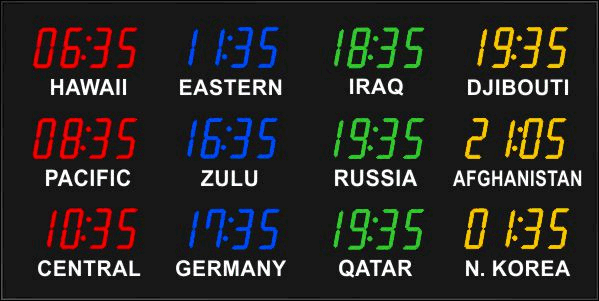

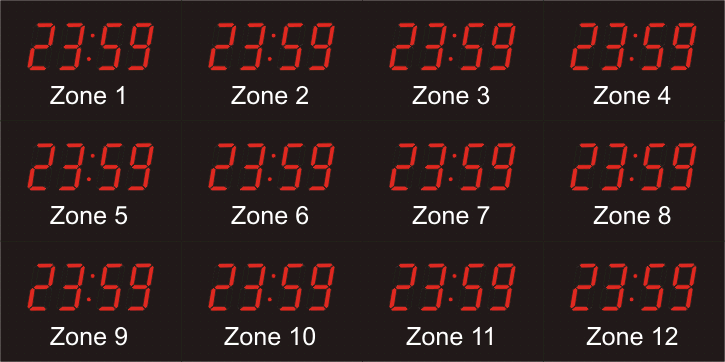

| 662Q |
12
|
3x4 | 4.0" | 1.50" | 30.25 | 60.25 | |
|
|
|

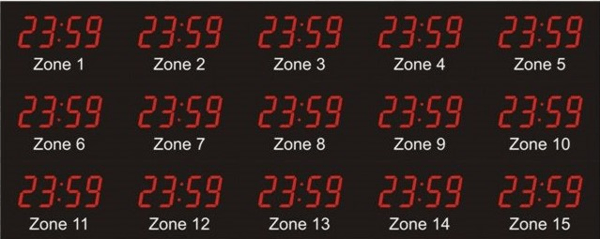

| 662R |
15
|
3x5 | 4.0" | 1.50" | 30.25 | 75.25 | |
|
|
|

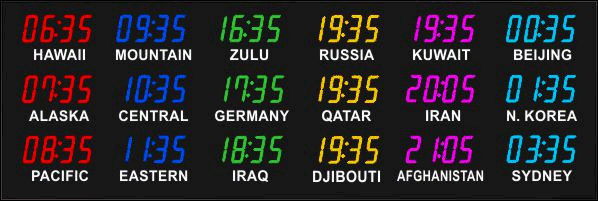

| 662BT |
18
|
3X6 | 4.0" | 1.50" | 30.25 | 90.25 | |
|
 |
|
| 4.0" Bar Segment LEDs & 4 x Grids - Viewing Distance 100 ft | ||||||||||

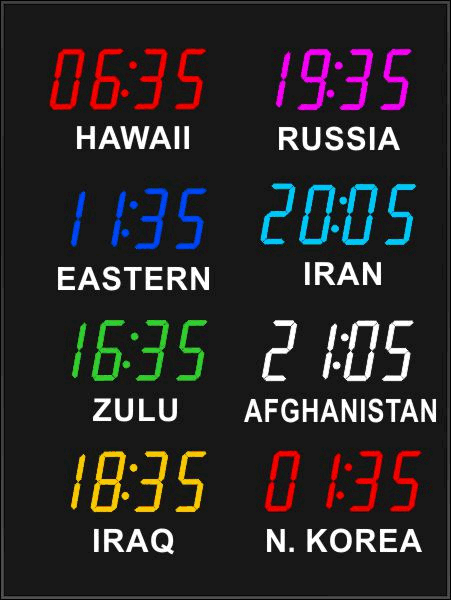

| 662Z |
8
|
4x2 | 4.0" | 1.50" | 40.25 | 30.25 | |
|
 |
|
| 662BU |
12
|
4x3 | 4.0" | 1.50" | 40.25 | 45.25 | |
|
 |
|

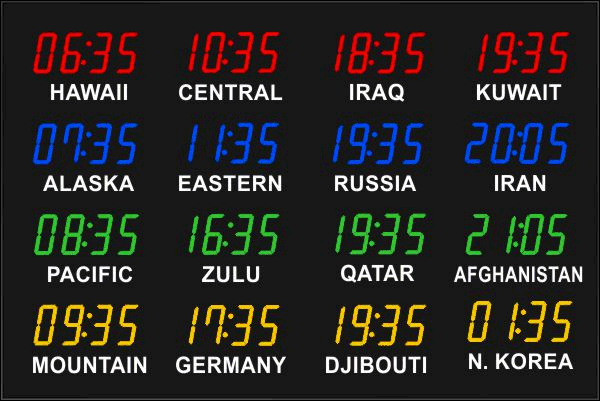

| 662BV |
16
|
4X4 | 4.0" | 1.50" | 40.25 | 60.25 | |
|
 |
|

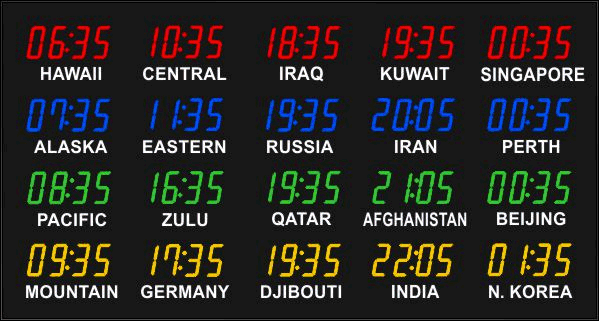

| 662BW |
20
|
4X5 | 4.0" | 1.50" | 40.25 | 75.25 | |
|
 |
|
| 662BX |
24
|
4X6 | 4.0" | 1.50" | 40.25 | 90.25 | |
|
 |
|
| 4.0" Bar Segment LEDs & 5 x Grids - Viewing Distance 100 ft | ||||||||||

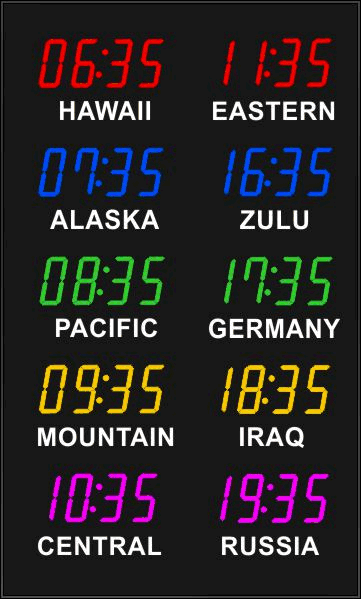

| 662AI |
10
|
5X2 | 4.0" | 1.50" | 50.25 | 30.25 | |
|
 |
|

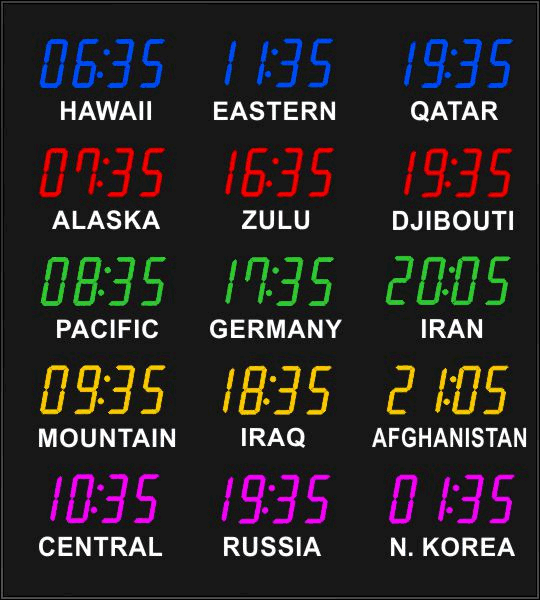

| 662BY |
15
|
5X3 | 4.0" | 1.50" | 50.25 | 45.25 | |
|
 |
|
| 4.0" Bar Segment LEDs & 6 x Grids - Viewing Distance 100 ft | ||||||||||
| 662BZ |
12
|

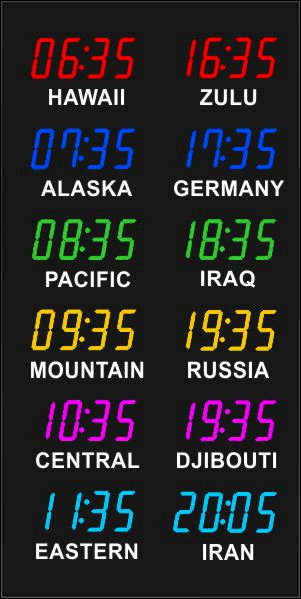

6X2 | 4.0" | 1.50" | 60.25 | 30.25 | |
|
 |
|

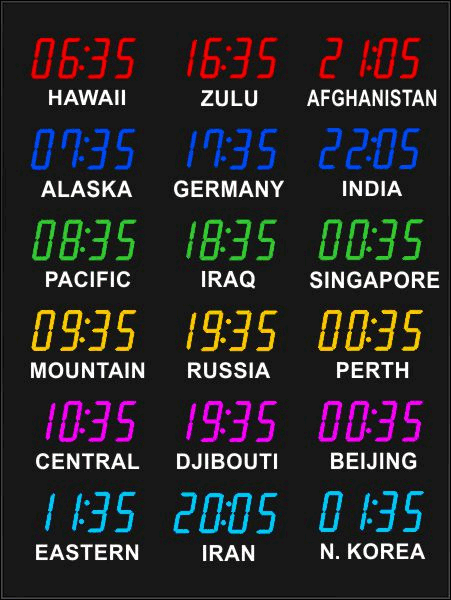

| 662CA |
18
|
6X3 | 4.0" | 1.50" | 60.25 | 45.25 | |
|
 |
|
| 4.0" Bar Segment LEDs & 7 x Grids - Viewing Distance 100 ft | ||||||||||

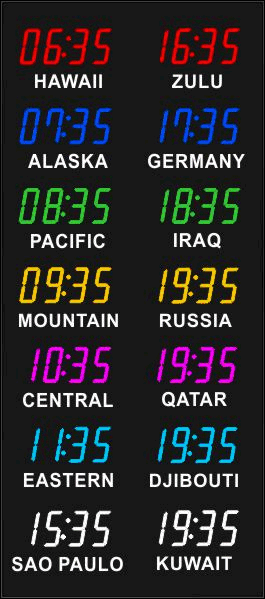

| 662CB |
14
|
7X2 | 4.0" | 1.50" | 70.25 | 30.25 | |
|
 |
|

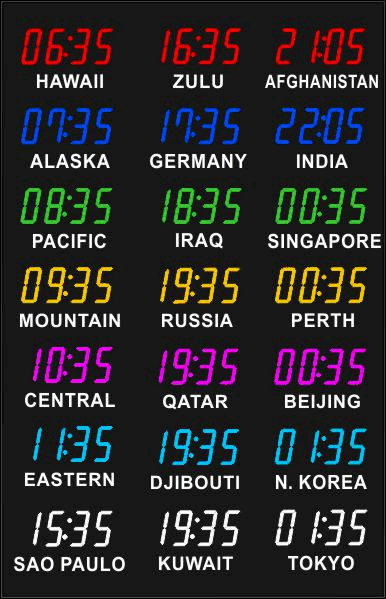

| 662CC |
21
|
7X3 | 4.0" | 1.50" | 70.25 | 45.25 | |
|
 |
|
| 4.0" Bar Segment LEDs & 8 x Grids - Viewing Distance 100 ft | ||||||||||

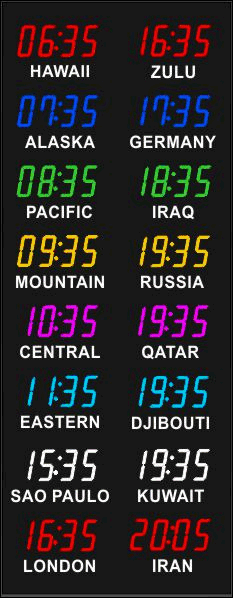

| 662CD |
16
|
8X2 | 4.0" | 1.50" | 80.25 | 30.25 | |
|
 |
|

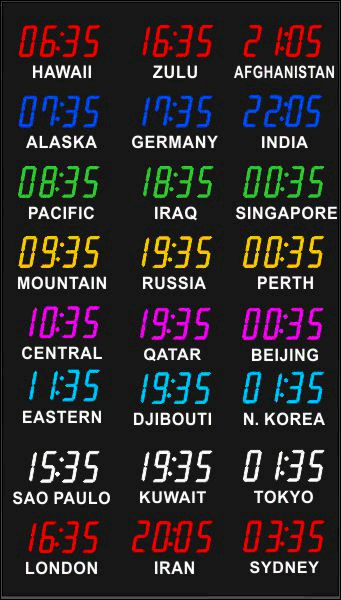

| 662CE |
24
|
8X3 | 4.0" | 1.50" | 80.25 | 45.25 | |
|
 |
|
BRG Time Zone Clocks can be configured to display the following special information when specified at the time of purchase. Not all features can be included in every clock due to memory constraints or operational conflicts:
Call 866-252-2704 or 316-530-8854
|
||||||||||
Additional Videos
|
Model Number
|
Number of Zones |
Click on button to launch
|

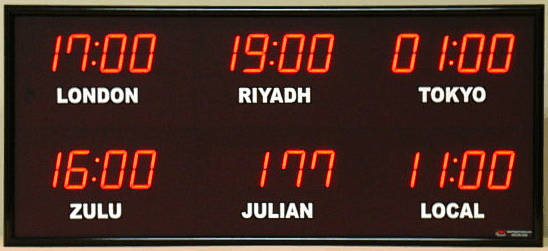

| 662G-DL20M | 6 Zone Clock laid out in a 2 x 3 grid with an optional 2.0", 20 Character Date | |
| 662H-RL | 8 Zone Clock laid out in a 2 x 4 grid with optional relocatable zone labels | |
| 662I-RL | 10 Zone Clock laid out in a 2 x 5 grid with optional relocatable zone labels | |
| 662V-RL | 8 Zone Clock laid out in a 4 x 2 grid with blue 1.8" LEDs for time with 0.75" optional removable zone labels. | |
Color Options
Photo Below is a 6610E-C with user changeable
multi-color LEDs & frosted lens |
Closeup of the 6610E-C with with user changeable
multi-color LEDs, frosted lens |
