Style 669
USER CHANGEABLE COLOR is standard on all BRG LED digital clocks.
BRG Time Zone Clocks are accurate for life without the need for manual or external time updates. A GUI touch screen IR remote control is available to ease configuration. BRG's 669 series allows you to change the color of any zone or zones with ease.
|
|
Introducing BRG's New Time Commander Graphical Remote Control Programmer Option |
|
Even though our fixed zone time zone clocks come with an IR remote control to change LED zone color and brightness, BRG offers the Time Commander Option.
The Time Commander is only compatible with BRG Time Zone Clocks Manufactured after October 2018
|
|
Call 866-252-2704 or 316-530-8854
Time Zone Display Style 669
Model 669R with Sample Zones
New Lower Price - Effective 11-17-2021 The 669 series time zone clocks have bar-segment LED time displays with white vinyl zone label below & a 7 color moving message display. The message displays feature either a 2 inch or 4 inch variable font character. In many 669 models, the clock can display up to 8 time zones at once. |
 |
For easy clock management, an infrared (IR) remote control is included with every 669 model. You can specify a radio (RF) remote, if preferred for no additional charge. Every 669 model includes your choice of an Ethernet or USB interface for easy time zone parameter control. Call 866-252-2704 or 316-530-8854 Now with 3X more LED's than competing products! |
|
Available Options for the 669 Time Zone Clock |
||
| Computer Interface and Time Sync Options | ||
| Option | Unit | Description |
| EN | Per Clock | Ethernet Synchronization |
| USB | Per Clock | PC Communications (USB) |
| GP | Per Clock | GPS Atomic Time Receiver (Indoor or Outdoor Mount) |
| PC | Per Clock | PC Serial Port Interface (RS232/422 Converter) |
| SB | Per Clock | IRIG-B / SMPTE Receiver |
| WF | Per Clock | Wi-Fi Receiver |
| SR-ST | Per Clock | Serial Wire Sync Receive / Transmit |
| ST | Per Clock | Serial Wire Sync Transmit |
| Misc Options | ||
| Option | Unit | Description |
| AB | Per Clock | Auto Brightness |
| M16 | Per Zone | Add 1.8" Seconds display to one zone |
| M26 | Per Zone | Add 2.5" Seconds display to one zone |
| M46 | Per Zone | Add 2.5" Seconds display to one zone |
| RL | Per Zone | Removable Labels (Choose one or all zones) |
| TS | Per Clock | Add a temperature senor to one zone |
| TM | Per Clock | Add Timer and IR receiver to one zone |
| PM2 | Per Clock | Double Pole Mount for ceiling mounting the clock |
| Remote Control Options | ||
| Option | Description | |
| IR1 | The infrared remote control is included with the purchase of a time zone clock | |
| USB-IR | IR dongle for your PC that allows you to control the time zone clock can be substituted of the IR1 Remote | |
| TC | Time Commander graphical IR remote control | |
| Power Configuration Options | ||
| Option | Description | |
| P0812 | 12 ft. power cord with US Plug (Default) | |
| P0808 | 8 ft. power cord with US Plug | |
| P11 | 8.5 ft. power cord with UK Plug | |
| P16 | 8.5 ft. power cord with Euro Plug | |
| P12 | 6.5 ft. power cord with Australian Plug | |
The 669 Models
| Model | Zones | Time Disp. | Msg. Width | Msg. display LED Height | Label Size White Vinyl | Viewing Dist. |
Inches |
Buy a Multi-Color LED Clock Online or order through GSA Advantage. GSA orders please call with zone labels |
|||||
| H | W | ||||||||||||

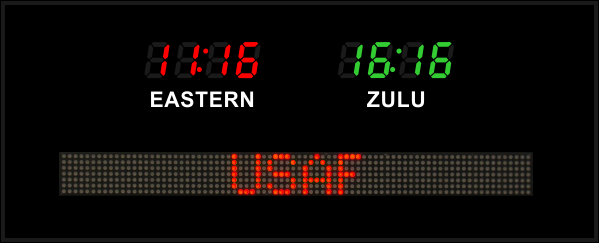

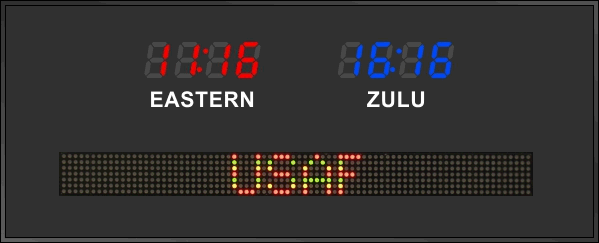

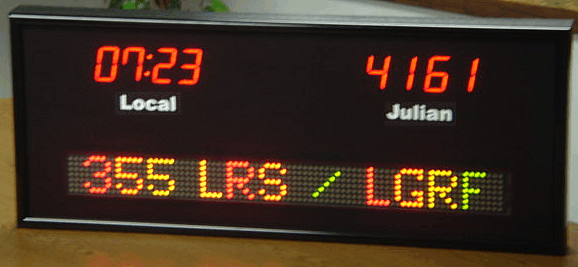

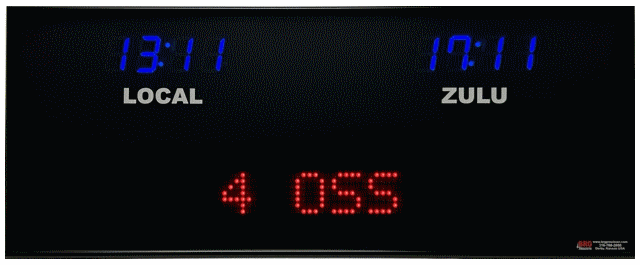

| 669A | 2 | 1.8" | 24" | 2" | 0.75" | 40 ft. | 12.25 | 30.25 |
|
 |
 |
 |
|

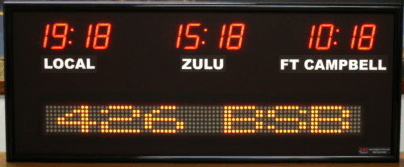

| 669B | 3 | 1.8" | 24" | 2" | 0.75" | 40 ft. | 12.25 | 30.25 |
|
 |
|
|
|

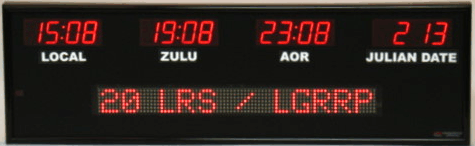

| 669C | 4 | 1.8" | 36" | 2" | 0.75" | 40 ft. | 12.25 | 40.25 |
|
 |
 |
|
|
| 669D | 5 | 1.8" | 36" | 2" | 0.75" | 40 ft. | 12.25 | 50.25 |
|
 |
|
|
|

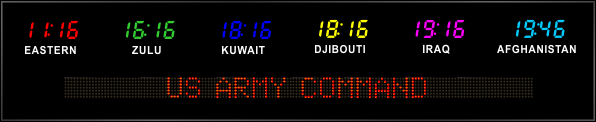

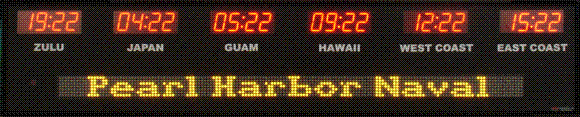

| 669M | 6 | 1.8" | 48" | 2" | 0.75" | 40 ft. | 12.25 | 60.25 |
|
 |
|
|
|

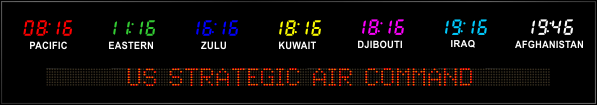

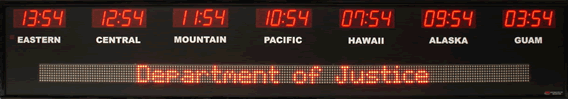

| 669N | 7 | 1.8" | 60" | 2" | 0.75" | 40 ft. | 12.25 | 70.25 |
|
 |
|
|
|
| 669O | 8 | 1.8" | 72" | 2" | 0.75" | 40 ft. | 12.25 | 80.25 |
|
 |
|
|
|
2.5 Inch Bar Segment LED Models |
|||||||||||||

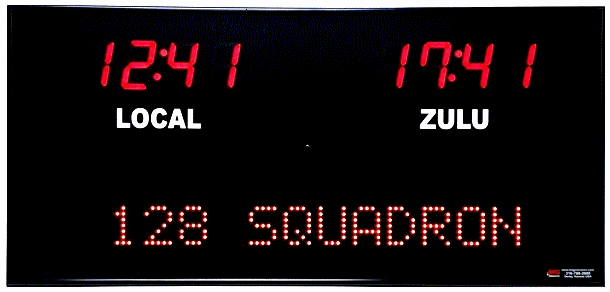

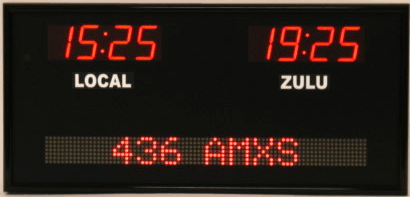

| 669E | 2 | 2.5" | 24" | 2" | 1.00" | 75 ft. | 14.25 | 30.25 |
|
 |
|
|
|

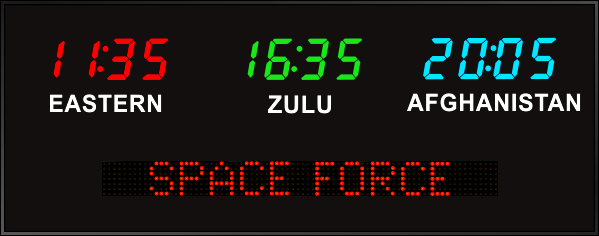

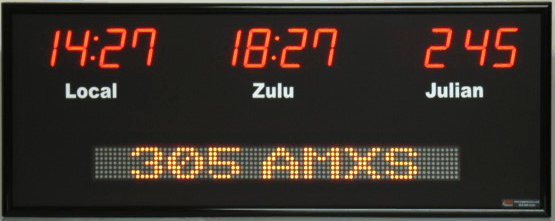

| 669F | 3 | 2.5" | 24" | 2" | 1.00" | 75 ft. | 14.25 | 36.25 |
|
 |
|
|
|

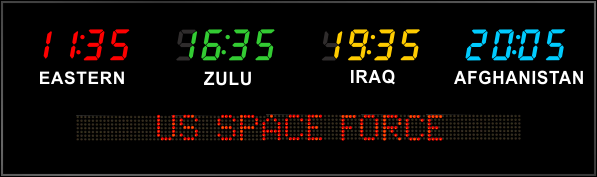

| 669G | 4 | 2.5" | 36" | 2" | 1.00" | 75 ft. | 14.25 | 48.25 |
|
 |
|
|
|

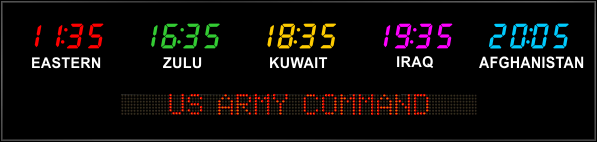

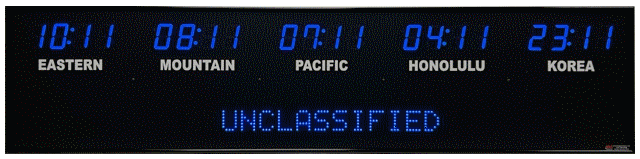

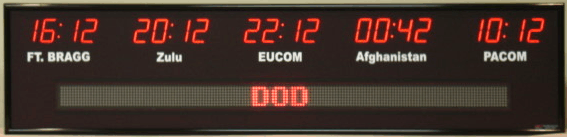

| 669H | 5 | 2.5" | 48" | 2" | 1.00" | 75 ft. | 14.25 | 60.25 |
|
 |
|
|
|

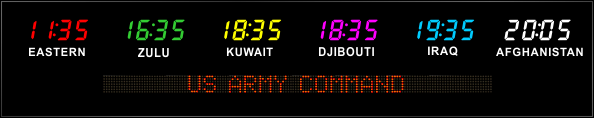

| 669P | 6 | 2.5" | 60" | 2" | 1.00" | 75 ft. | 14.25 | 72.25 |
|
 |
|
|
|

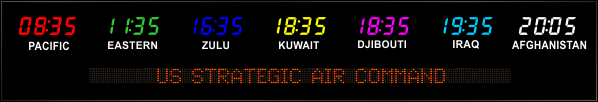

| 669Q | 7 | 2.5" | 72" | 2" | 1.00" | 75 ft. | 14.25 | 84.25 |
|
 |
|
|
|
| 669R | 8 | 2.5" | 72" | 2" | 1.00" | 75 ft. | 14.25 | 96.25 |
|
|
|
|
|
4.0 Inch Bar Segment LED Models |
|||||||||||||

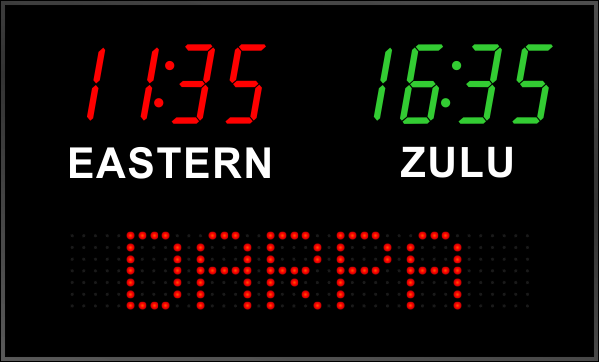

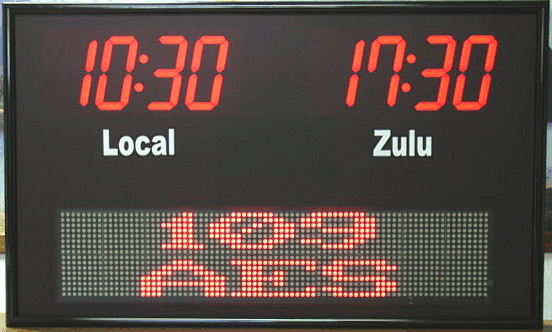

| 669I | 2 | 4.0" | 24" | 4" | 1.50" | 100 ft. | 18.25 | 30.25 |
|
 |
|
|
|

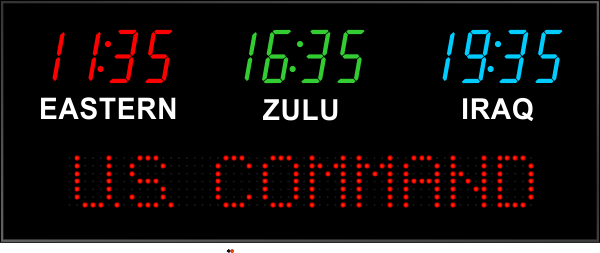

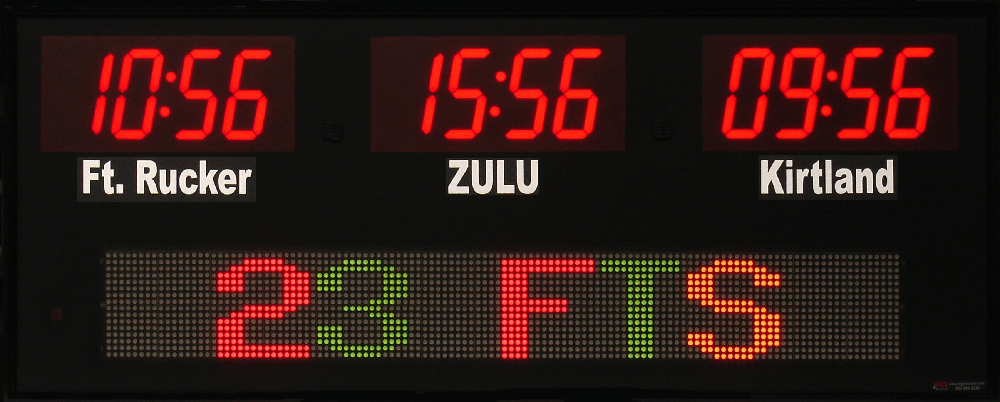

| 669J | 3 | 4.0" | 36" | 4" | 1.50" | 100 ft. | 18.25 | 45.25 |
|
 |
|
|
|

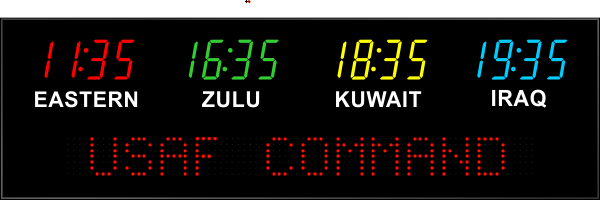

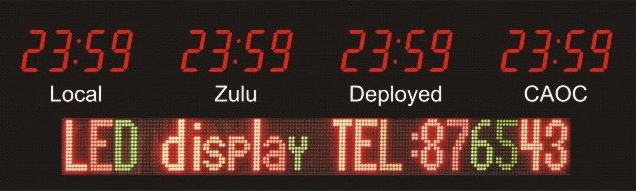

| 669K | 4 | 4.0" | 48" | 4" | 1.50" | 100 ft. | 18.25 | 60.25 |
|
 |
|
|
|

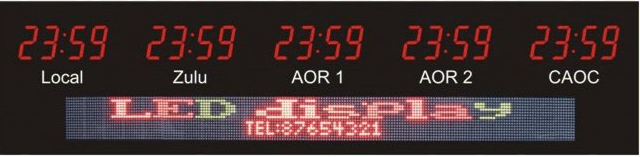

| 669L | 5 | 4.0" | 60" | 4" | 1.50" | 100 ft. | 18.25 | 75.25 |
|
 |
|
|
|

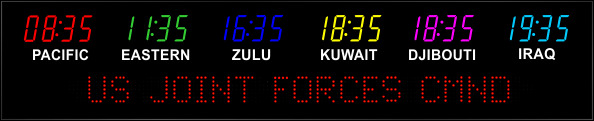

| 669S | 6 | 4.0" | 72" | 4" | 1.50" | 100 ft. | 18.25 | 90.25 |
|
 |
|
|
|

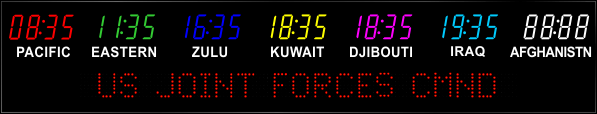

| 669T | 7 | 4.0" | 72" | 4" | 1.50" | 100 ft. | 18.25 | 99.25 |
|
 |
|
|
|
Call 866-252-2704 or 316-530-8854
|
|||||||||||||
 |
|||||||||||||
Additional Videos
| Model Number | Number of Zones |
Click on button to launch
|
|

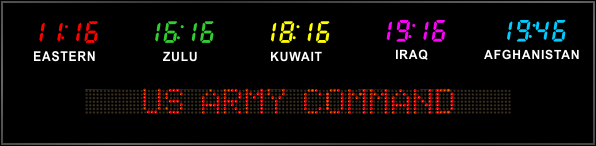

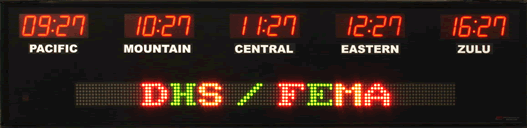

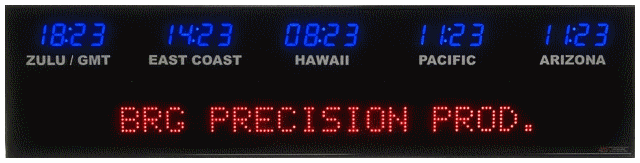

669D
|
5 Zone Clock with blue 1.8 " LEDs for time, 0.75" white vinyl zone labels & a 36" tri-color single line message display |
|
Color Options
|
Red is the standard color
 |
Blue is optional
 |
Green is optional
 |
Photo Below is a 6610E-C with user
changeable
multi-color LEDs & frosted lens |
||
Closeup of the 6610E-C with with user changeable
multi-color LEDs, frosted lens |
||
