Style 689

USER CHANGEABLE COLOR is standard on all BRG LED digital clocks.

BRG 689P User changeable Time Zone Clock

BRG Time Zone Clocks are accurate for life without the need for manual or external time updates. A GUI touch screen IR remote control is available to ease configuration.

BRG's 689 series allows you to change the color of any zone or zones with ease.
Change the color of 1 Zone, Several Zones or All Zones
Program time zones as situations change
7 Colors Available: Red, Blue, Green, Yellow, Magenta, Cyan or White
Clear smoked lens to highlight the 7 different colors
Highlight your operations area or hot zone by programming a separate color
Make Zulu Time stand out by programming it in a different color so it will stand out
Tired of red LEDs switch to another color anytime.
Provides great flexibility
Adapt easily to a changing world

Introducing BRG's New Time Commander Graphical Remote Control Programmer Option

Click for more information

Even though our fixed zone time zone clocks come with an IR remote control to change LED zone color and brightness, BRG offers the Time Commander Option.

Allows you to change the:
LED Colors
Intensity (global or by zone)
Use on multiple time zone clocks
Easy to use
Eliminates the need for a computer interface
Wireless IR remote
Color touch screen for ease
Large 7 inch color LCD touch screen display
Rechargeable Battery

The Time Commander is only compatible with BRG Time Zone Clocks Manufactured after October 2018

Call 866-252-2704 or 316-530-8854

Time Zone Display Style 689

Model 689A

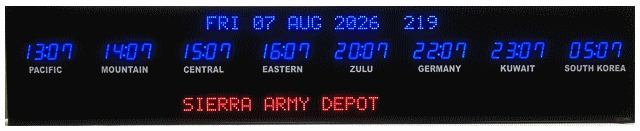

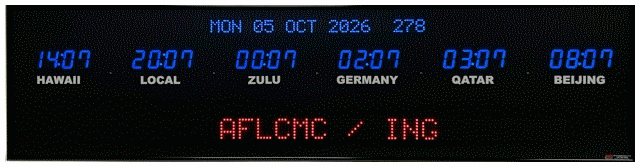

The 689 series time zone clocks features a Dot Matrix LED date, bar-segment LED time displays with white vinyl zone label below & a 7 color moving message display. The message displays feature either a 2 inch or 4 inch variable font character. In many 689 models, the clock can display up to 8 time zones at once. The date can be arranged in any format and can include Julian dates. For instance, you could have 14 APR 09 or FRI APR 14.

All zones are precisely synchronized with one another.
Factory synchronized with the U.S. Atomic Clock.
Accurate for Life – no manual adjustments are required for the life of the display, no sync wires, no radios, no problems.
Time and configuration are maintained during shipping and power outages
Operating Voltage: 90-265 volts AC.
Many control, sync methods, power and color options are available
Includes BRG's F5 Anodized Black Aluminum Frame Learn More

For easy clock management, an infrared (IR) remote control is included with every 689 model. You can specify a radio (RF) remote, if preferred for no additional charge. Every 689 model includes your choice of an Ethernet or USB interface for easy time zone parameter control.

Call 866-252-2704 or 316-530-8854

Now with 3X more LED's than competing products!

Available Options for the 689 Time Zone Clock
Computer Interface and Time Sync Options
Option	Unit	Description
EN	Per Clock	Ethernet Synchronization
USB	Per Clock	PC Communications (USB)
GP	Per Clock	GPS Atomic Time Receiver (Indoor or Outdoor Mount)
PC	Per Clock	PC Serial Port Interface (RS232/422 Converter)
SB	Per Clock	IRIG-B / SMPTE Receiver
WF	Per Clock	Wi-Fi Receiver
SR-ST	Per Clock	Serial Wire Sync Receive / Transmit
ST	Per Clock	Serial Wire Sync Transmit

Misc Options
Option	Unit	Description
AB	Per Clock	Auto Brightness
M16	Per Zone	Add 1.8" Seconds display to one zone
M26	Per Zone	Add 2.5" Seconds display to one zone
M46	Per Zone	Add 2.5" Seconds display to one zone
RL	Per Zone	Removable Labels (Choose one or all zones)
TS	Per Clock	Add a temperature senor to one zone
TM	Per Clock	Add Timer and IR receiver to one zone
PM2	Per Clock	Double Pole Mount for ceiling mounting the clock

Remote Control Options
Option	Description
IR1	The infrared remote control is included with the purchase of a time zone clock
USB-IR	IR dongle for your PC that allows you to control the time zone clock can be substituted of the IR1 Remote
TC	Time Commander graphical IR remote control

Power Configuration Options
Option	Description
P0812	12 ft. power cord with US Plug (Default)
P0808	8 ft. power cord with US Plug
P11	8.5 ft. power cord with UK Plug
P16	8.5 ft. power cord with Euro Plug
P12	6.5 ft. power cord with Australian Plug

The 689 Models

Model

Zones

Time Disp.

Date Disp.

Date Width

Msg. Width

Msg. disp. LED Height

Label Size White Vinyl

Inches

Download Spec Sheet

Buy a Multi-Color LED Clock Online or order through GSA Advantage.

GSA orders please call with zone labels

Viewing Distance for 1.8" LED displays is 40 ft.

689A

1.8"

1.2"

24"

0.75"

15.25

30.25

689B

1.8"

1.2"

24"

0.75"

15.25

30.25

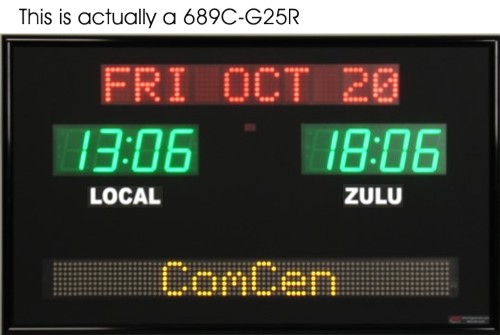

689C

1.8"

1.2"

24"

0.75"

15.25

30.25

689D

1.8"

1.2"

24"

0.75"

15.25

30.25

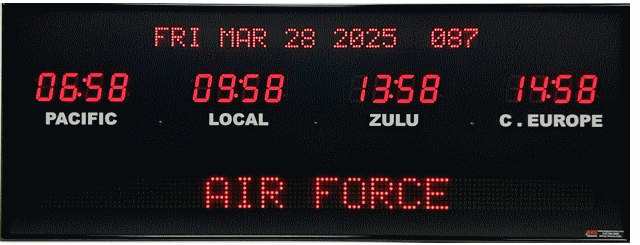

689E

1.8"

1.2"

36"

0.75"

15.25

40.25

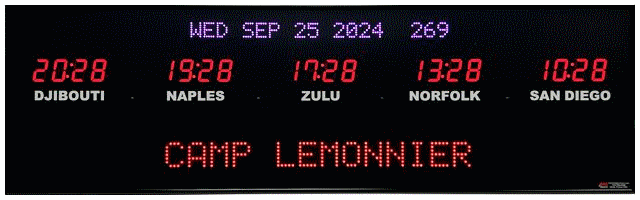

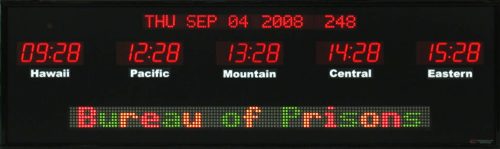

689F

1.8"

1.2"

36"

0.75"

15.25

50.25

689G

1.8"

1.2"

48"

0.75"

15.25

60.25

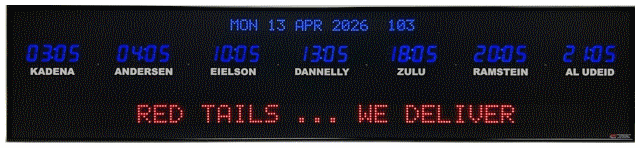

689H

1.8"

1.2"

60"

0.75"

15.25

70.25

689I

1.8"

1.2"

72"

0.75"

15.25

80.25

Viewing Distance for 2.5" LED displays is 75 ft.

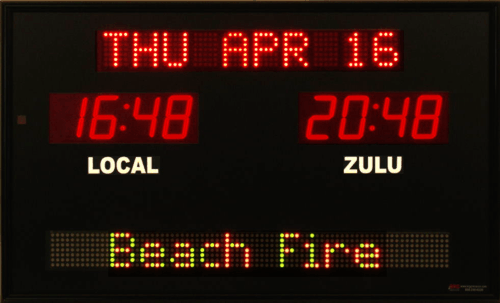

689J

2.5"

2.0"

24"

1.00"

18.25

30.25

689K

2.5"

2.0"

24"

1.00"

18.25

39.25

689L

2.5"

2.0"

24"

1.00"

18.25

36.25

689M

2.5"

2.0"

24"

1.00"

18.25

39.25

689N

2.5"

2.0"

36"

1.00"

18.25

48.25

689O

2.5"

2.0"

48"

1.00"

18.25

60.25

689P

2.5"

2.0"

60"

1.00"

18.25

72.25

689Q

2.5"

2.0"

72"

1.00"

18.25

84.25

689R

2.5"

2.0"

72"

1.00"

18.25

96.25

Viewing Distance for 4" LED displays is 100ft.

689S

4.0"

2.0"

24"

1.50"

22.25

30.25

689T

4.0"

2.0"

36"

1.50"

22.25

39.25

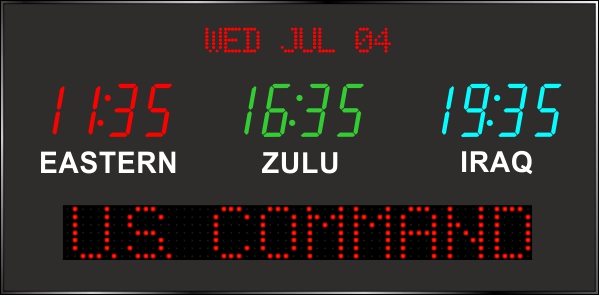

689U

4.0"

2.0"

36"

1.50"

22.25

45.25

689V

4.0"

2.0"

36"

1.50"

22.25

45.25

689W

4.0"

2.0"

48"

1.50"

22.25

60.25

689X

4.0"

2.0"

60"

1.50"

22.25

75.25

689Y

4.0"

2.0"

72"

1.50"

22.25

90.25

689Z

4.0"

2.0"

72"

1.50"

22.25

96.25

BRG Time Zone Clocks can be configured to display the following special information when specified at the time of purchase. Not all features can be included in every clock due to memory constraints or operational conflicts:

ATO Military Day Code (alpha displays only)
ISO8601 Work Week (alpha and/or numeric displays)
Julian Date (day of the year - alpha and/or numeric displays)
Week of the Year (alpha displays only)
Sunrise and/or Sunset Time (alpha and/or numeric displays)
Military Shipping Code A-Z, no I or O (alpha displays only)

Call 866-252-2704 or 316-530-8854

Download Spec Sheet

Additional Videos

Model Number	Number of Zones	Click on button to launch
689B	2 zone, fixed zone, time zone clock. It has 1.8" Blue LEDs for the time and 1.2" red dot matrix LEDs for the date and a single line moving message display.

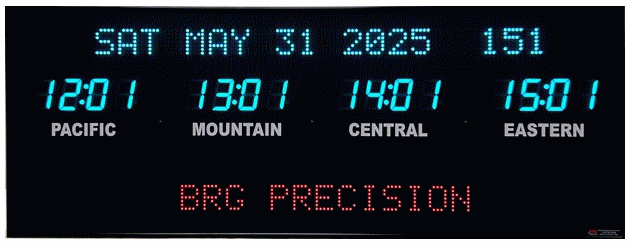

689N-RL-TS	4 Zone Clock with 2.5 " LEDs for time, 2.0 ", 20 character Dot Matrix LEDs for the date. This clock has the optional 1.0" removable white vinyl labels and optional temperature sensor that displays the current temperature in the far right of the date line and a single line 36" moving message display.

Color Options

Red is the standard color	Blue is optional	Green is optional
Photo Below is a 6610E-C with user changeable multi-color LEDs & frosted lens Change to red, blue, green, yellow, magenta, cyan or white any time you want
Closeup of the 6610E-C with with user changeable multi-color LEDs, frosted lens
