Style 7329
A USER CHANGEABLE COLOR option is now available on
all 7329's for an additional $75. Also, a new GUI touch screen
IR remote control, with built in help screens, is available for time
zone clock reconfiguration.

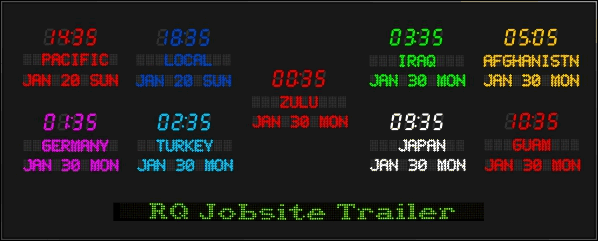

BRG's C-series allows you to change the color of any zone or
zones with ease.
- Change the color of 1 Zone, Several Zones or All Zones
- Program time zones as situations change
- 7 Colors Available: Red, Blue, Green, Yellow, Magenta, Cyan
or White
- Clear smoked lens to highlight the 7 different colors
- Highlight your operations area or hot zone by programming a
separate color
- Make Zulu Time stand out by programming it in a different
color so it will stand out
- Tired of red LEDs switch to another color anytime.
- Provides great flexibility
- Adapt easily to a changing world
BRG 7329B-C 2.5" User Changeable
Time Zone Clock with 60" moving message display
|
| Introducing BRG's New
Time Commander Graphical Remote Control Programmer Option |
 |
- Allows you to change the:
- Time Display Rules for each zone
- LED Colors (user changeable models)
- Intensity (global or by zone)
- Zone Labels
- Use on multiple time zone clocks
- Easy to use
- Eliminates the need for a computer interface
- Wireless IR remote
- Color touch screen for ease
- Saves time when reprogramming clock
- Large 7 inch color LCD touch screen display
- Rechargeable Battery
|
Time Zone Display Style 7329
Model 7329A featuring a 4" message display with Sample Zones
(Not Standard)

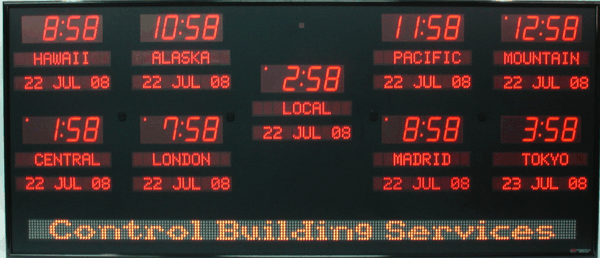

| The 7329 series LED digital world time zone
clocks have bar-segment LED time displays with a ten character dot matrix
digital zone labels & dates below & a tri color moving message display.
The message display has a 2 inch variable font character. The 7329 models
display 9 time zones. |
 |
More zones may be displayed than physically
available by page flipping to another set of zones – For example, a 5 zone
display can actually display up to 20 zones by page flipping through 4 sets of
zones. Selected zones can remain constant while other zones change.
- All zones are precisely synchronized with one
another.
- Supports Page Flipping to display more zones than
physical zone positions available.
- Dynamic digital lettering can include fixed titles
and/or date, day, day of the year, etc.
- Factory synchronized with the U.S. Atomic Clock.
- Accurate for Life – no manual
adjustments are required for the life of the display, no sync wires,
no radios, no problems.
- Models with digital zone labels can page flip to
display more zones than physically available.
- Time and configuration are maintained during
shipping and power outages
- Operating Voltage: 90-265 volts AC.
- Many control, sync methods, power and color options
are available
- Infrared remote control included (RF remote
optional)
- Includes your choice of an Ethernet or USB
interface for easy time zone parameter control.
- Includes BRG's F5 Anodized Black Aluminum Frame Learn More
Available Options for the 7329 Time Zone Clock
|
| Computer Interface and Time Sync Options |
| Option |
Unit |
Description |
| EN |
Per Clock |
Ethernet Interface (NTP time sync and UDP parameter control) |
| GP |
Per Clock |
GPS Atomic Time Receiver (Indoor or Outdoor Mount) |
| PC |
Per Clock |
PC Serial Port Interface (RS232/422 Converter) |
| RC |
Per Clock |
DuraTime 2.4 GHz Radio Transceiver for synchronization or parameter control |
| SB |
Per Clock |
IRIG-B / SMPTE Receiver |
| WF |
Per Clock |
Wi-Fi Receiver |
| SR-ST |
Per Clock |
Serial Wire Sync Receive / Transmit |
| ST |
Per Clock |
Serial Wire Sync Transmit |
| Call 866-252-2704 or 316-530-8854 for questions and assistance |
| Misc Options |
| Option |
Unit |
Description |
| AB |
Per Clock |
Auto Brightness |
| M16 |
Per Zone |
Add 1.8" Seconds display to one zone |
| M26 |
Per Zone |
Add 2.5" Seconds display to one zone |
| M46 |
Per Zone |
Add 2.5" Seconds display to one zone |
| TS |
Per Clock |
Add a temperature senor to one zone |
| TM |
Per Clock |
Add Timer and IR receiver to time zone clock |
| PM2 |
Per Clock |
Double Pole Mount for ceiling mounting |
| |
| Remote Control Options |
| Option |
Description |
| IR1 |
The infrared remote control is included with the purchase of a time zone clock |
| USB-IR |
IR dongle for your PC that allows you to control the time zone clock can be substituted of the IR1 Remote |
| IR1LR |
Long Range IR Remote with 100 ft. range |
| TC |
Time Commander graphical IR remote control |
| |
| Power Configuration Options |
| Option |
Description |
| P0812 |
12 ft. power cord with US Plug (Default) |
| P0808 |
8 ft. power cord with US Plug |
| P11 |
8.5 ft. power cord with UK Plug |
| P16 |
8.5 ft. power cord with Euro Plug |
| P12 |
6.5 ft. power cord with Australian Plug |
The 7329 Models |
Online Orders
The Time Zone Clocks that are ordered online are built with the specifications
below:
- Red Bar Segment LEDs for Time
- Red Dot Matrix LEDs for Zone Labels
- 10 or 20 Character Day & Date Display
- OCXO Oscillator that is accurate to +/- 1 second over 20 years
- PC Interface: USB Adapter or Ethernet
- IR Remote Control is standard, RF remote available as an option
- 12 ft power cord with U.S. plug
- 3 week lead time
If you want custom displays, multiple colors, an
oscillator upgrade, GSA pricing or want to speak to a sales
professional, Call 800-295-0220 for
Sales Assistance
Download Spec
Sheet
Addtional Videos
| Model Number |
Number of Zones |
Click on button to
launch |
|
All Models
|
Programmable Time Zone Page Flipping Example |
|
| Color Options |
Red on red (default)
|
Green on green
|
Blue on blue
|
Photo Below is a 6610E-C with user
changeable
multi-color LEDs & frosted lens
Change to red, blue, green, yellow, magenta, cyan or white any time you
want
|
Closeup of the 6610E-C with with user changeable
multi-color LEDs, frosted lens |
