BRG Style 7710 Programmable Zone Digital Time Zone Displays, World Clocks, Digital World Clocks or Time Zone Clocks

Style 7710

USER CHANGEABLE COLOR is standard on all BRG LED digital clocks.

BRG Time Zone Clocks are accurate for life without the need for manual or external time updates. A GUI touch screen IR remote control is available to ease configuration.

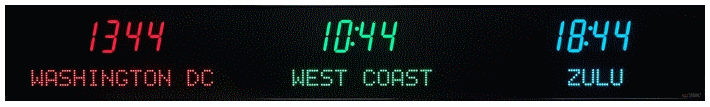

BRG's 7710 Series allows you to change the color of any zone or zones with ease.

Change the color of 1 Zone, Several Zones or All Zones
Program time zones as situations change
7 Colors Available: Red, Blue, Green, Yellow, Magenta, Cyan or White
Clear smoked lens to highlight the 7 different colors
Highlight your operations area or hot zone by programming a separate color
Make Zulu Time stand out by programming it in a different color so it will stand out
Tired of red LEDs switch to another color anytime.
Provides great flexibility
Adapt easily to a changing world
IR remote control included

BRG 7710D 1.8" User Changeable Time Zone Clock

Introducing BRG's New Time Commander Graphical Remote Control Programmer Option. Recommended for Programmable Time Zone Clocks.

Click for more information

Allows you to change the:

Time Display Rules for each zone
LED Colors (user changeable models)
Intensity (global or by zone)
Zone Labels

Use on multiple time zone clocks
Easy to use
Eliminates the need for a computer interface
Wireless IR remote
Color touch screen for ease
Saves time when reprogramming clock
Large 7 inch color LCD touch screen display
Rechargeable Battery

The Time Commander is only compatible with BRG Time Zone Clocks Manufactured after October 2018

Call 866-252-2704 or 316-530-8854

Time Zone Display Style 7710

7710I with User Changeable Color LEDs

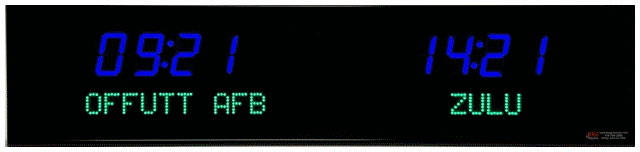

The 7710 series LED digital world time zone clocks have bar-segment LED time displays with fifteen character dot matrix digital zone labels below.

More zones may be displayed than physically available by page flipping to another set of zones – For example, a 5 zone display can actually display up to 20 zones by page flipping through 4 sets of zones. Selected zones can remain constant while other zones change.

All zones are precisely synchronized with one another.
Supports Page Flipping to display more zones than physical zone positions available.
Dynamic digital lettering can include fixed titles and/or date, day, day of the year, etc.
Factory synchronized with the U.S. Atomic Clock.
Accurate for Life – no manual adjustments are required for the life of the display, no sync wires, no radios, no problems.
Models with digital zone labels can page flip to display more zones than physically available.
Time and configuration are maintained during shipping and power outages
Operating Voltage: 90-265 volts AC.
Many control, sync methods, power and color options are available
Infrared remote control included (RF remote optional)
Includes your choice of an Ethernet or USB interface for easy time zone parameter control.
Includes BRG's F5 Anodized Black Aluminum Frame Learn More

Now with 3X more LED's than competing products!

Available Options for the 7710 Time Zone Clock
Computer Interface and Time Sync Options
Option	Unit	Description
EN	Per Clock	Ethernet Interface (NTP time sync and UDP parameter control)
GP	Per Clock	GPS Atomic Time Receiver (Indoor or Outdoor Mount)
PC	Per Clock	PC Serial Port Interface (RS232/422 Converter)
RC	Per Clock	DuraTime 2.4 GHz Radio Transceiver for synchronization or parameter control
SB	Per Clock	IRIG-B / SMPTE Receiver
WF	Per Clock	Wi-Fi Receiver
SR-ST	Per Clock	Serial Wire Sync Receive / Transmit
ST	Per Clock	Serial Wire Sync Transmit
Call 866-252-2704 or 316-530-8854 for questions and assistance
Misc Options
Option	Unit	Description
AB	Per Clock	Auto Brightness
M16	Per Zone	Add 1.8" Seconds display to one zone
M26	Per Zone	Add 2.5" Seconds display to one zone
M46	Per Zone	Add 2.5" Seconds display to one zone
TS	Per Clock	Add a temperature senor to one zone
TM	Per Clock	Add Timer and IR receiver to time zone clock
PM2	Per Clock	Double Pole Mount for ceiling mounting

Remote Control Options
Option	Description
IR1	The infrared remote control is included with the purchase of a time zone clock
USB-IR	IR dongle for your PC that allows you to control the time zone clock can be substituted of the IR1 Remote
IR1LR	Long Range IR Remote with 100 ft. range
TC	Time Commander graphical IR remote control

Power Configuration Options
Option	Description
P0812	12 ft. power cord with US Plug (Default)
P0808	8 ft. power cord with US Plug
P11	8.5 ft. power cord with UK Plug
P16	8.5 ft. power cord with Euro Plug
P12	6.5 ft. power cord with Australian Plug

The 7710 Models

1.8" Bar Segment LEDs for Time & 1.2" Dot Matrix LEDs for Zone Labels

Viewing distance is up to 40 ft.

Model	Zones	Time Display	Label Display	Max. Pages	Inches		Download Spec Sheet	Buy a Multi-Color LED Clock Online or order through GSA Advantage. GSA orders please call with zone labels
Model	Zones	Time Display	Label Display	Max. Pages	Height	Width	Download Spec Sheet
7710B	2	1.8"	1.2"	8	7.25	36.25
7710C	3	1.8"	1.2"	5	7.25	54.25
7710D	4	1.8"	1.2'"	4	7.25	72.25
7710E	5	1.8"	1.2"	3	7.25	90.25

Viewing distance is up to 40 ft.
Model	Zones	Sections	Maximum		Displays		Dimensions		Download Spec Sheet	Buy Online
Model	Zones	Sections	Pages	Zones	Time	Label	H	W	Download Spec Sheet	Buy Online
7710CC	6	2	2	12	1.8"	1.2"	7.25	108.5
7710DD	8	2	2	16	1.8"	1.2"	7.25	144.5
7710CCC	9	3	1	9	1.8"	1.2"	7.25	162.75
7710EE	10	2	1	10	1.8"	1.2"	7.25	180.5
7710DCD	11	3	1	11	1.8"	1.2"	7.25	198.75
7710DDD	12	3	1	12	1.8"	1.2"	7.25	216.75
7710ECE	13	3	1	13	1.8"	1.2"	7.25	234.75
7710CDDC	14	4	1	14	1.8"	1.2"	7.25	253.0
7710EEE	15	3	1	15	1.8"	1.2"	7.25	270.75
7710DDDD	16	4	1	16	1.8"	1.2"	7.25	289.0
7710DCCCD	17	5	1	17	1.8"	1.2"	7.25	307.25

2.5" Bar Segment LEDs for Time & 1.2" Dot Matrix LEDs for Zone Labels
Viewing Distance is 75ft

Model	Zones	Time Display	Label Display	Max. Pages	Inches		Download Spec Sheet	Buy a Multi-Color LED Clock Online or order through GSA Advantage. GSA orders please call with zone labels
Model	Zones	Time Display	Label Display	Max. Pages	H	W	Download Spec Sheet
7710G	2	2.5"	1.2"	8	8.25	36.25
7710H	3	2.5"	1.2"	5	8.25	54.25
7710I	4	2.5"	1.2"	4	8.25	72.25
7710J	5	2.5"	1.2"	3	8.25	90.25

Viewing Distance is 75ft
Model	Zones	Sec-tions	Maximum		Displays		Dimensions		Download Spec Sheet	Buy Online
Model	Zones	Sec-tions	Pages	Zones	Time	Label	H	W	Download Spec Sheet	Buy Online
7710HH	6	2	2	12	2.5"	1.2"	8.25	108.5
7710II	8	2	2	16	2.5"	1.2"	8.25	144.5
7710HHH	9	3	1	9	2.5"	1.2"	8.25	162.75
7710JJ	10	3	1	10	2.5"	1.2"	8.25	180.5
7710IHI	11	3	1	11	2.5"	1.2"	8.25	198.75
7710III	12	3	1	12	2.5"	1.2"	8.25	216.75
7710JHJ	13	3	1	13	2.5"	1.2"	8.25	234.75
7710HIIH	14	4	1	14	2.5"	1.2"	8.25	253.0
7710JJJ	15	3	1	15	2.5"	1.2"	8.25	270.75
7710IIII	16	4	1	16	2.5"	1.2"	8.25	289.0
7710IHHHI	17	5	1	17	2.5"	1.2"	8.25	307.25

Call 866-252-2704 or 316-530-8854

4.0" Bar Segment LEDs for Time & 1.2" Dot Matrix LEDs for Zone Labels

Viewing Distance Up to 75 ft

Model	Zones	Time Display	Label Display	Max. Pages	Inches		Download Spec Sheet	Buy a Multi-Color LED Clock Online or order through GSA Advantage. GSA orders please call with zone labels
Model	Zones	Time Display	Label Display	Max. Pages	H	W	Download Spec Sheet
7710L	2	4.0"	1.2"	8	10.25	32.25
7710M	3	4.0"	1.2"	5	10.25	54.25
7710N	4	4.0"	1.2"	4	10.25	72.25
7710O	5	4.0"	1.2"	3	10.25	90.25

Viewing Distance Up to 75 ft
Model	Zones	Sec-tions	Maximum		Displays		Dimensions		Download Spec Sheet	Buy Online
Model	Zones	Sec-tions	Pages	Zones	Time	Label	H	W	Download Spec Sheet	Buy Online
7710MM	6	2	2	12	4.0"	1.2"	10.25	108.5
7710NN	8	2	2	16	4.0"	1.2"	10.25	144.5
7710MMM	9	3	1	9	4.0"	1.2"	10.25	162.75
7710OO	10	2	1	10	4.0"	1.2"	10.25	180.5
7710NMN	11	4	1	11	4.0"	1.2"	10.25	198.75
7710NNN	12	3	1	12	4.0"	1.2"	10.25	216.75
7710OMO	13	3	1	13	4.0"	1.2"	10.25	234.75
7710MNNM	14	4	1	14	4.0"	1.2"	10.25	253.0
7710OOO	15	3	1	15	4.0"	1.2"	10.25	270.75
7710NNNN	16	4	1	16	4.0"	1.2"	10.25	289.0
7710NMMMN	17	5	1	17	4.0"	1.2"	10.25	307.25

4.0" Bar Segment LEDs for Time & 2.0" Dot Matrix LEDs for Zone Labels

Viewing distance is up to 100 ft.

Model	Zones	Time Display	Label Display	Max. Pages	Inches		Download Spec Sheet	Buy a Multi-Color LED Clock Online or order through GSA Advantage. GSA orders please call with zone labels
Model	Zones	Time Display	Label Display	Max. Pages	H	W	Download Spec Sheet
7710Q	2	4.0"	2.0"	8	12.25	58.25
7710R	3	4.0"	2.0"	5	12.25	87.25

Viewing distance is up to 100 ft.
Model	Zones	Sec- tions	Maximum		Displays		Dimensions		Download Spec Sheet	Buy Online
Model	Zones	Sec- tions	Pages	Zones	Time	Label	H	W	Download Spec Sheet	Buy Online
7710QQ	4	2	4	16	4.0"	2.0"	12.25	116.5
7710RR	6	2	2	12	4.0"	2.0"	12.25	174.5
7710RQR	8	3	2	16	4.0"	2.0"	12.25	232.75
7710RRR	9	3	1	9	4.0"	2.0"	12.25	261.75
7710QQQQQ	10	5	1	10	4.0"	2.0"	12.25	291.25
7710RRRR	12	4	1	12	4.0"	2.0"	12.25	349.0
7710RRRRR	15	5	1	15	4.0"	2.0"	12.25	436.25

BRG Time Zone Clocks can be configured to display the following special information when specified at the time of purchase. Not all features can be included in every clock due to memory constraints or operational conflicts:
